[Thinkware Dashcam Link] How to Connect via Wi Fi for Dash Cam with LCD

Compatible models: ARC 900, ARC, and X850

Disclaimer

Please be aware that the dash cam is not recording when connected via Wi-Fi.

• The Wi-Fi will time out and disconnect if inactive or the screen on your smartphone turns off.
• Ensure to disconnect from the dash cam's Wi-Fi before beginning to drive.
• The same instructions listed below are available on the app through an on-screen guide.
• THINKWARE DASH CAM LINK will require a minimum operating system version of iOS 15 and Android 9 or higher to continue receiving app updates and support.

How to Connect via Wi-Fi by Scanning the Barcode

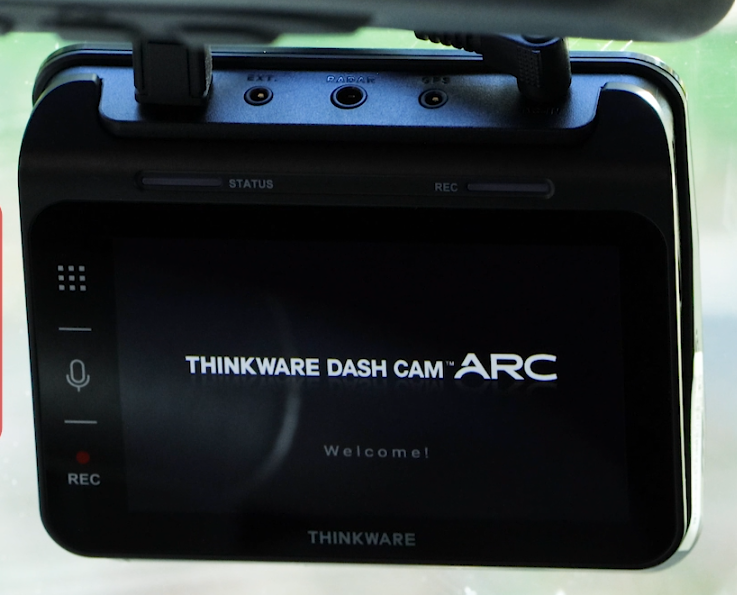

1. Turn the vehicle's ignition on to begin the dash cam in its Continuous Recording Mode.

*Must be within the vehicle with the ignition on, to connect via Wi-Fi.

2. Download and Install Thinkware Dash Cam Link App on your smartphone.

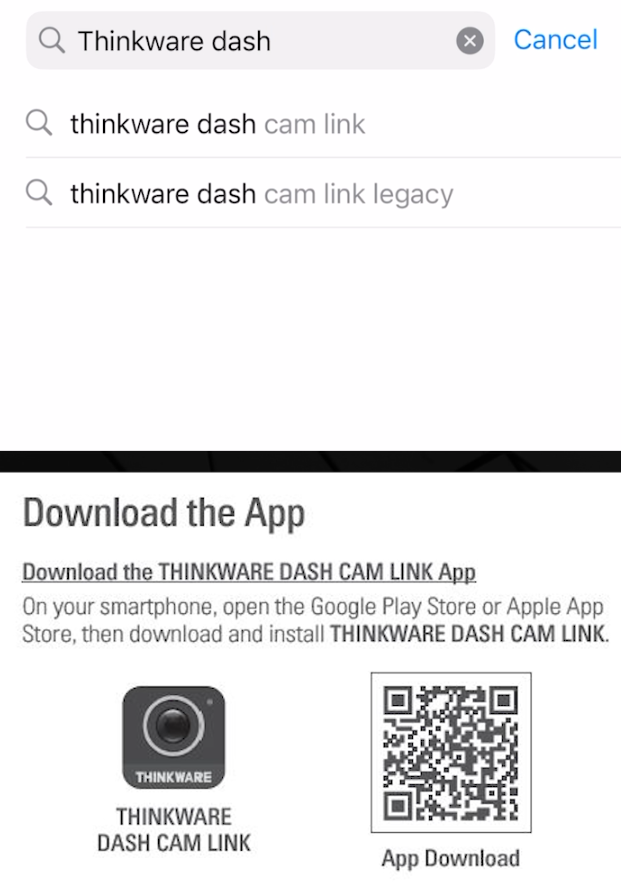

• Search THINKWARE Dash Cam Link app in the Apple App Store or the Google Play Store
• or SCAN the QR Code in the Quick Start Guide included in the box or shown on the LCD screen after tapping the "Wi-Fi" icon.

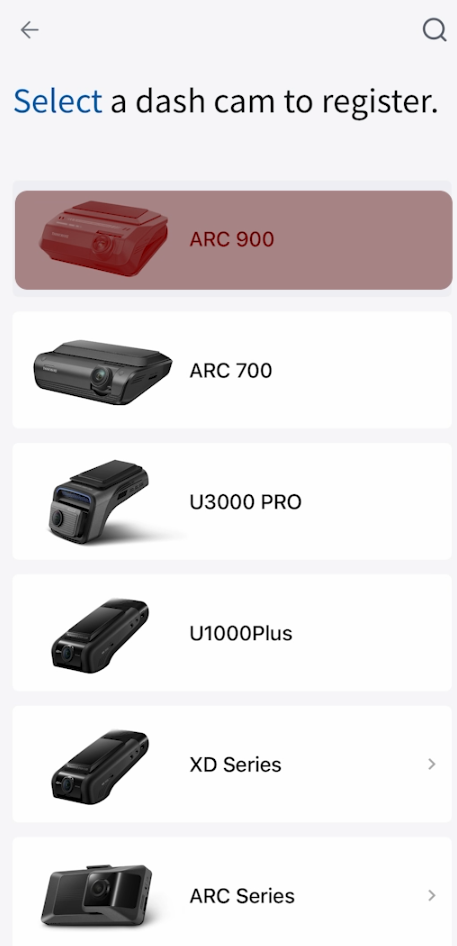

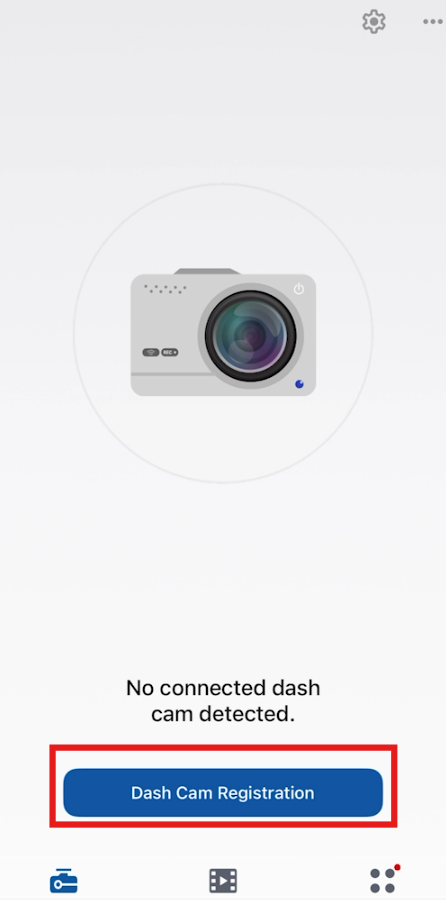

3. Open the app, then tap "Dashcam Registration" and select your Dash cam model.

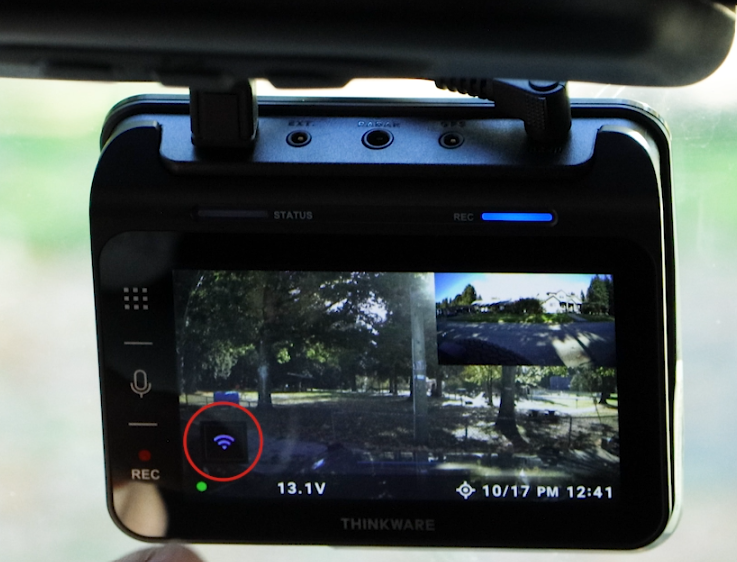

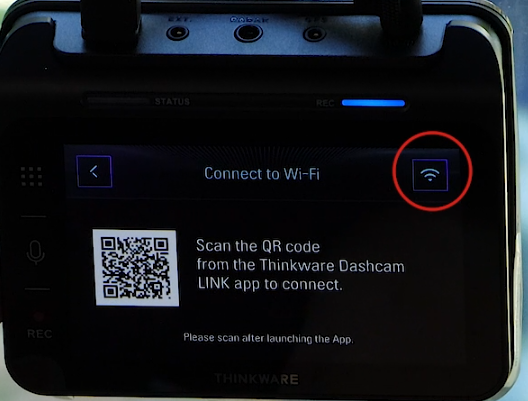

4. Press the Wi-fi icon on the LCD screen.

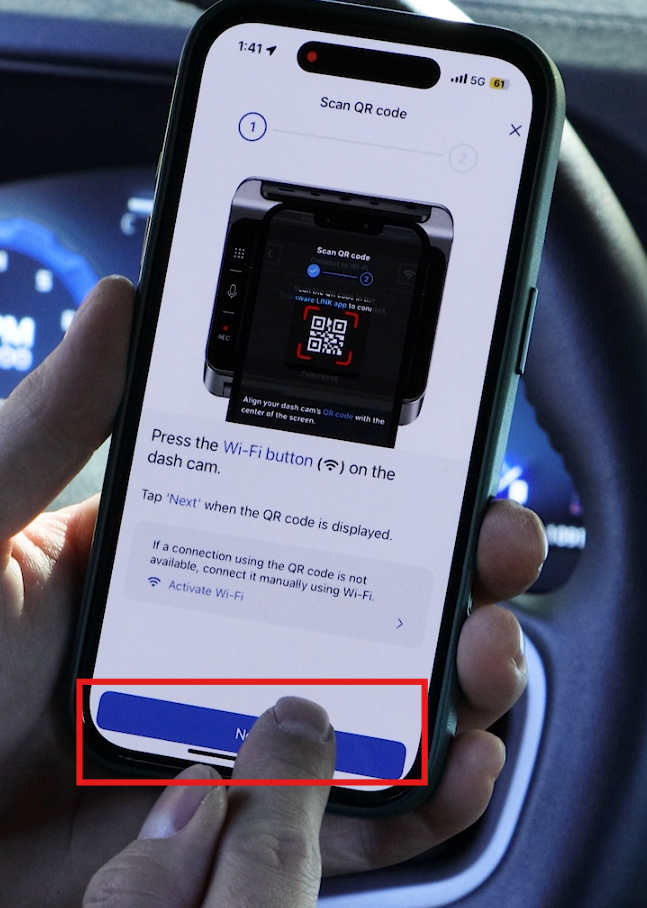

5. Tap "Next" button when on the App when the QR code was displayed from the LCD screen.

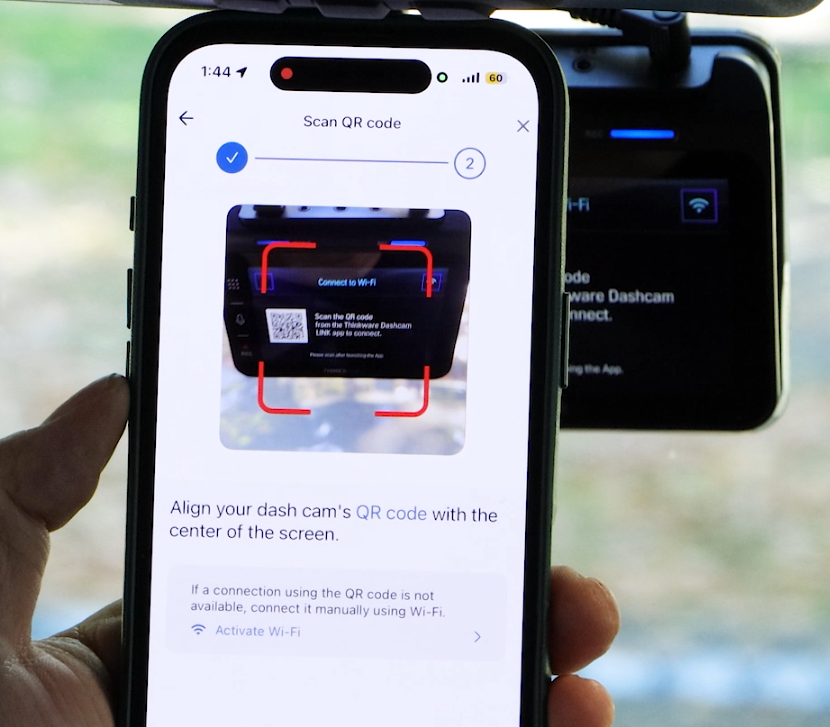

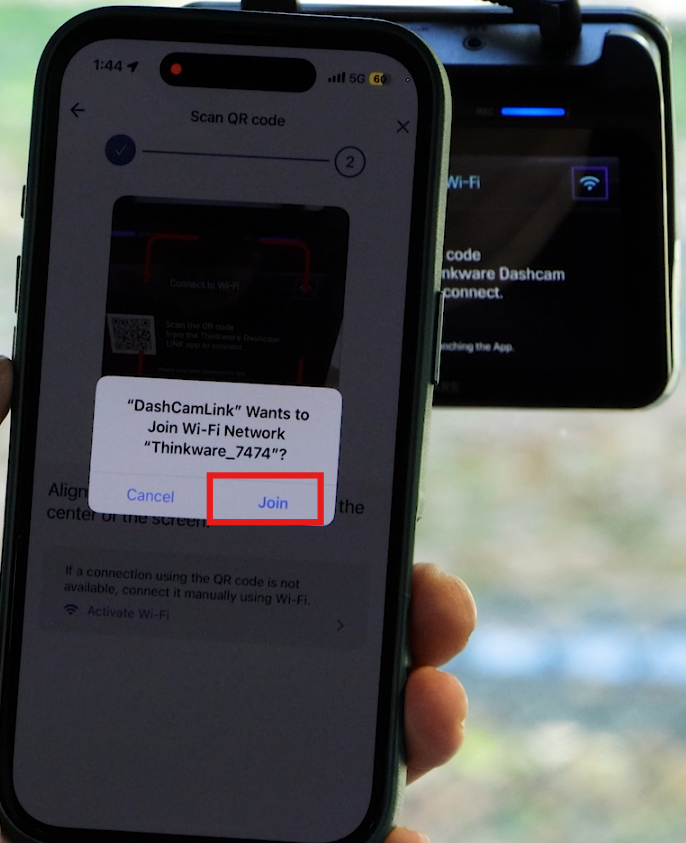

6. Scan the on-screen QR code shown on the LCD screen and tap "Join" Wi-Fi.

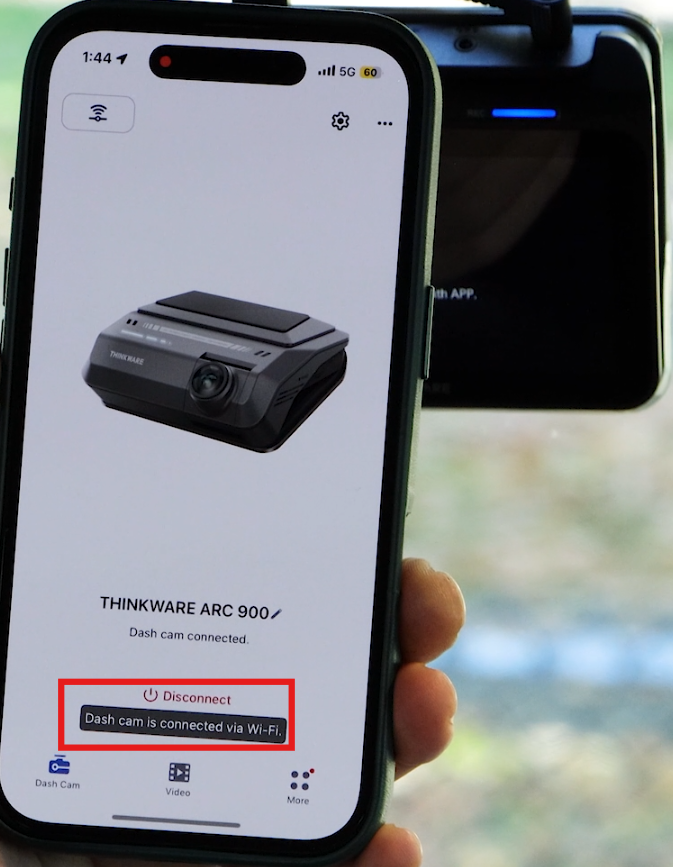

7. You are now connected to your Dash cam via Wi-Fi.

How to Connect via Wi-Fi by Manual Wi-Fi Connection

1. Turn on the vehicle's ignition to begin the dash cam in its Continuous Recording Mode.

*Must be within the vehicle with the ignition on, to connect via Wi-Fi.

2. Open the app, then tap "Dashcam Registration" and select your Dash cam model.

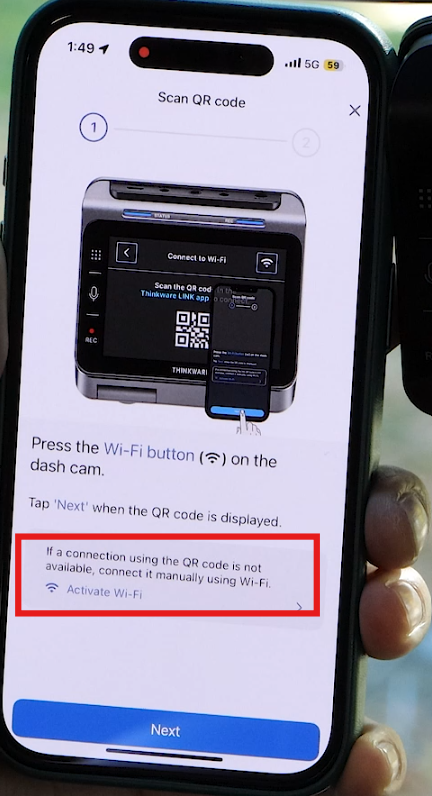

3. Tap 'Activate Wi-Fi' on the app.

4. Press the Wi-Fi button on the dash cam.

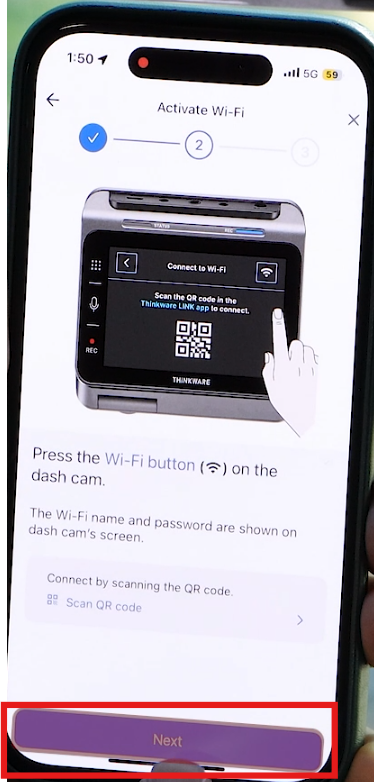

5. Tap "Next" in the App.

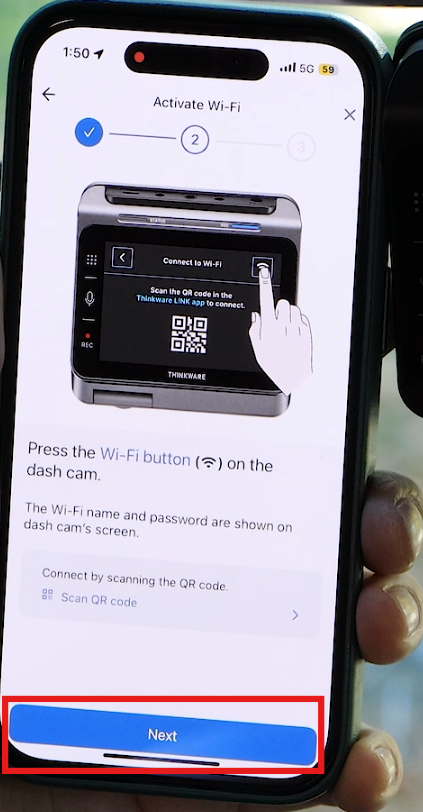

6. Press again the Wi-Fi button on the dash cam. This time it is on the top right hand corner of the LED screen.

7. Tap "Next" on the App.

.

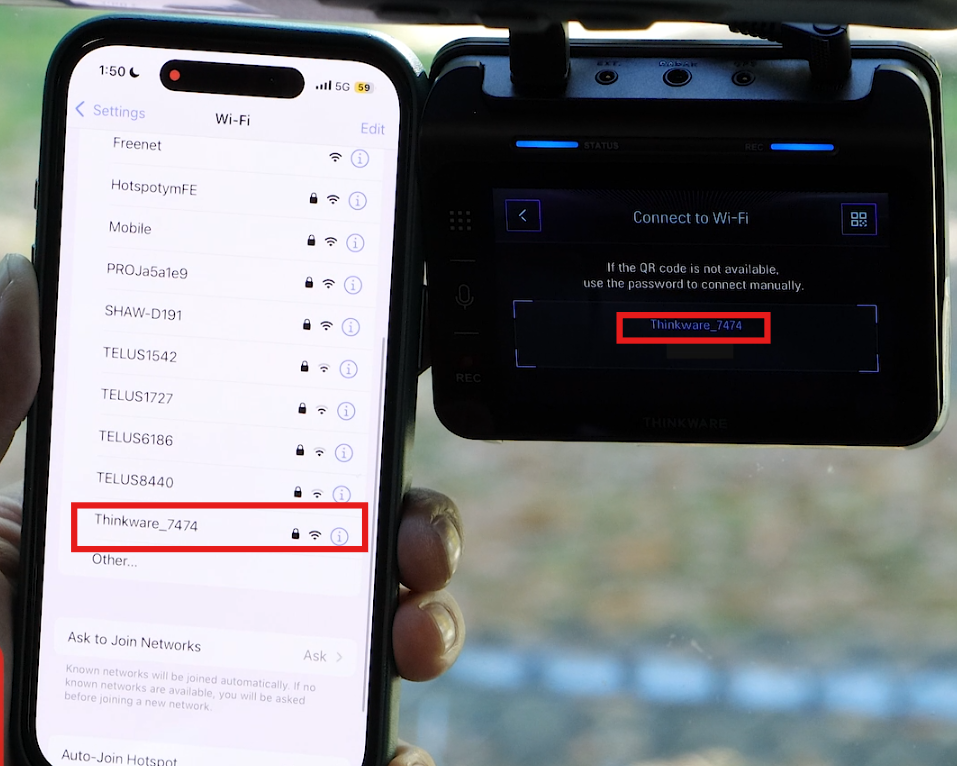

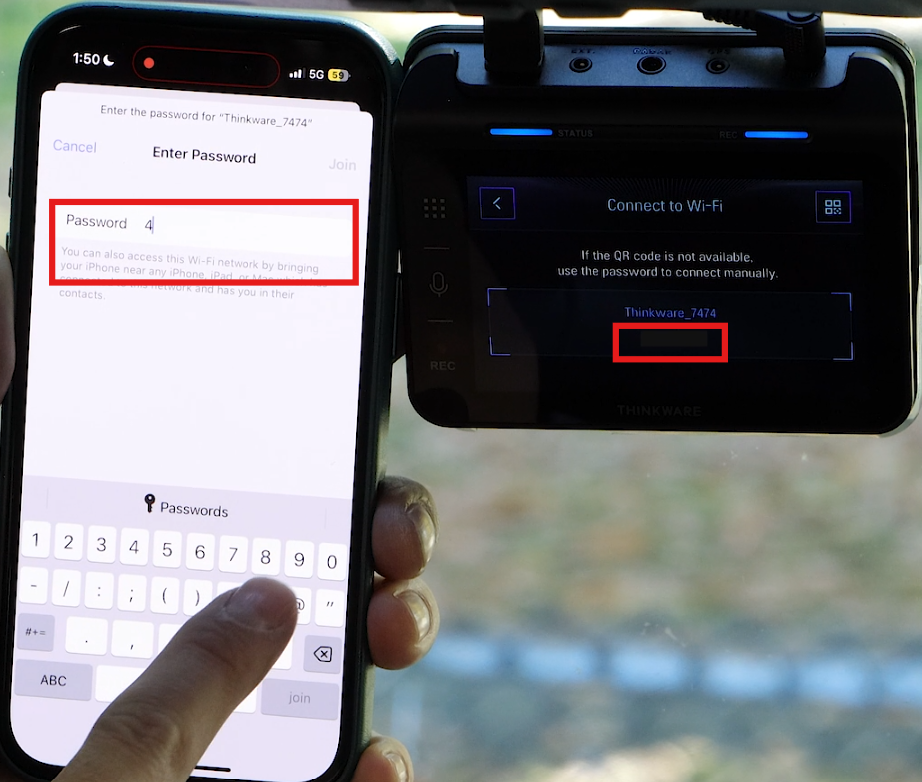

8. Go to your iPhone's Wi-Fi settings and connect to the Thinkware Wi-Fi network using the password shown on the dash cam's screen.

*If the Thinkware Wi-Fi disconnects or disappears immediately, please refer to Disabling Wi-Fi Assist.

*"No Internet Connection and Weak Security" is a normal message, please disregard it.

9. Go back to the app and wait until the app loads and you'll see a message that says "Connected to a Smartphone"

You are now Connected to your Dash Cam!

If you have any questions or concerns regarding the Wi-Fi connection to the dash cam, please reach out to our team at support@thinkware.com or 1-844-865-9273.
