Rotate Rear Camera

Rear Camera Video Upside-Down

Is the footage for your Thinkware Rear Camera appearing upside-down?

If the footage for the Rear View Camera is shown upside-down, this is an indication that the Rear Camera was installed incorrectly.

The Dash Cam model you own will determine the method to fix the Rear Camera being upside down.

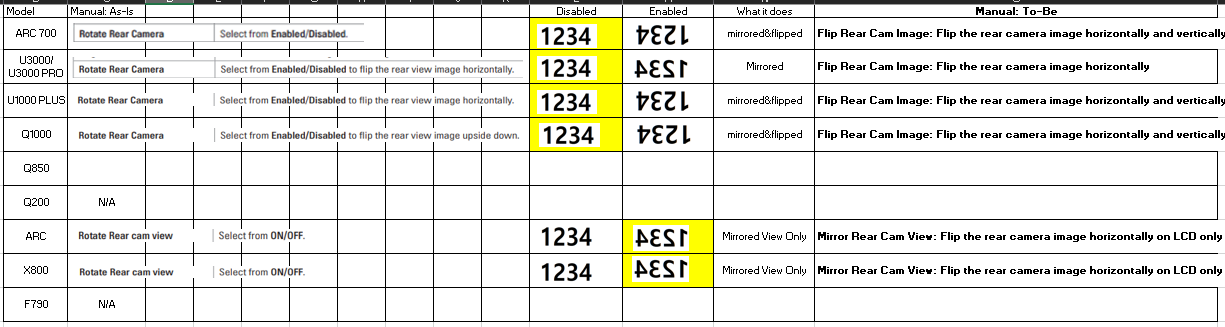

Dash Cam must be Re-Installed	Setting in Mobile App (Camera Settings)
X500	F800 / F800PRO
F750 / F770	Q800PRO / QA100 ELITE
F100 / F200 / FA200 / F200 PRO	U1000 / Q1000
X700	M1

Please refer to the article below for instructions on how to Install the Rear Camera.

1. Connect to the Dashcam via Wi-Fi or Bluetooth

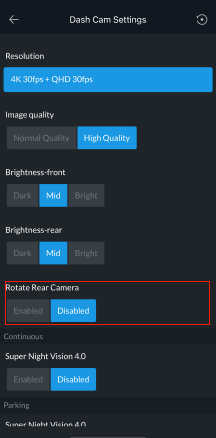

2. Select Dash Cam Settings > Camera Settings

3. Under Rotate Rear Camera, select enabled or disabled to correct the rear camera view back to an upright position.

4. Once you are done, click on the back arrow in the top-right to finalize your settings.

Note: The settings vary depending on the dash cam mode
