How to Install the GPS Antenna

What is the Thinkware GPS Antenna?

The External GPS Antenna is compatible with the Q200, F70PRO, F70, F200PRO, X800, and X1000 Dash Cam models.

The GPS Antenna records your speed and location and embeds this data into each video file. It also warns you audibly about upcoming Red Light and Speed Cameras while driving. The GPS Data, such as location and speed, can be accessed using the Thinkware Dash Cam Viewer application on a PC or Mac computer only.

Items Required for Installation

1. Front Thinkware Dash Cam

2. Thinkware External GPS Antenna

3. Microfiber Cloth

4. Glass Cleaner

How to Install the GPS Antenna

1. Clean the front windshield with the microfiber cloth and glass cleaner. This will ensure the adhesive has a stronger bond to the glass.

2. Connect the GPS Antenna to the GPS Port of the front dash cam while it is powered off.

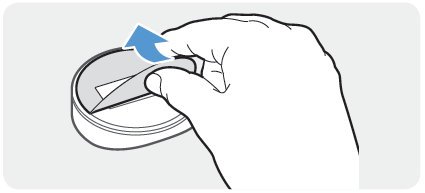

3. Peel the red adhesive covering off the GPS Antenna.

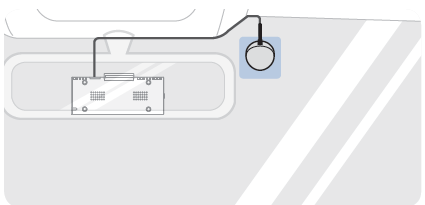

4. Mount the GPS Antenna. The GPS Antenna should be mounted away from the Main Unit of the Dash Cam to reduce noise interference.

5. Power on the Dash Cam and wait to hear the announcement "GPS Connected"

*GPS reception may be affected by interference from the vehicle's windshield, particularly those treated with an anti-UV protective coating or built-in defroster.

You have successfully installed the External GPS Antenna!

If you have any questions or concerns regarding the installation of the GPS Antenna, please reach out to our team at support@thinkware.com or 1-844-865-9273.
