[Thinkware CONNECTED] Fleet Management System

What is Fleet Management System (FMS)?

The Fleet Management System can be accessed from your web browser and gives detailed information about each registered dash cam like driving routes, driving behavior, status of the vehicles, etc. It is ideal for fleet managers and people who have more dash cams connected to the same account.

Note: Max 30 dash cams can be connected to one account.


What features can I access on FMS?

Driving History and Vehicle Status

Find important information like the location of your vehicles, whether they are parked or driving, driving routes, driving behavior, battery voltage, etc. of all registered vehicles.

Geofencing

Geofencing allows fleet managers to be updated on vehicles’ comings and goings. The dash cam will send a push notification through the THINKWARE CONNECTED mobile app if a vehicle enters or exits a pre-selected geographic zone. The radius of the zone can be set easily by simply tapping on the Google Maps display and selecting the desired radius, from 100m all the way up to 600km.

Note: Geofencing is only available on the web browser.


Event Notifications

You can receive strong impact notifications while driving and parked and emergency notifications on the desktop.

How to use FMS?

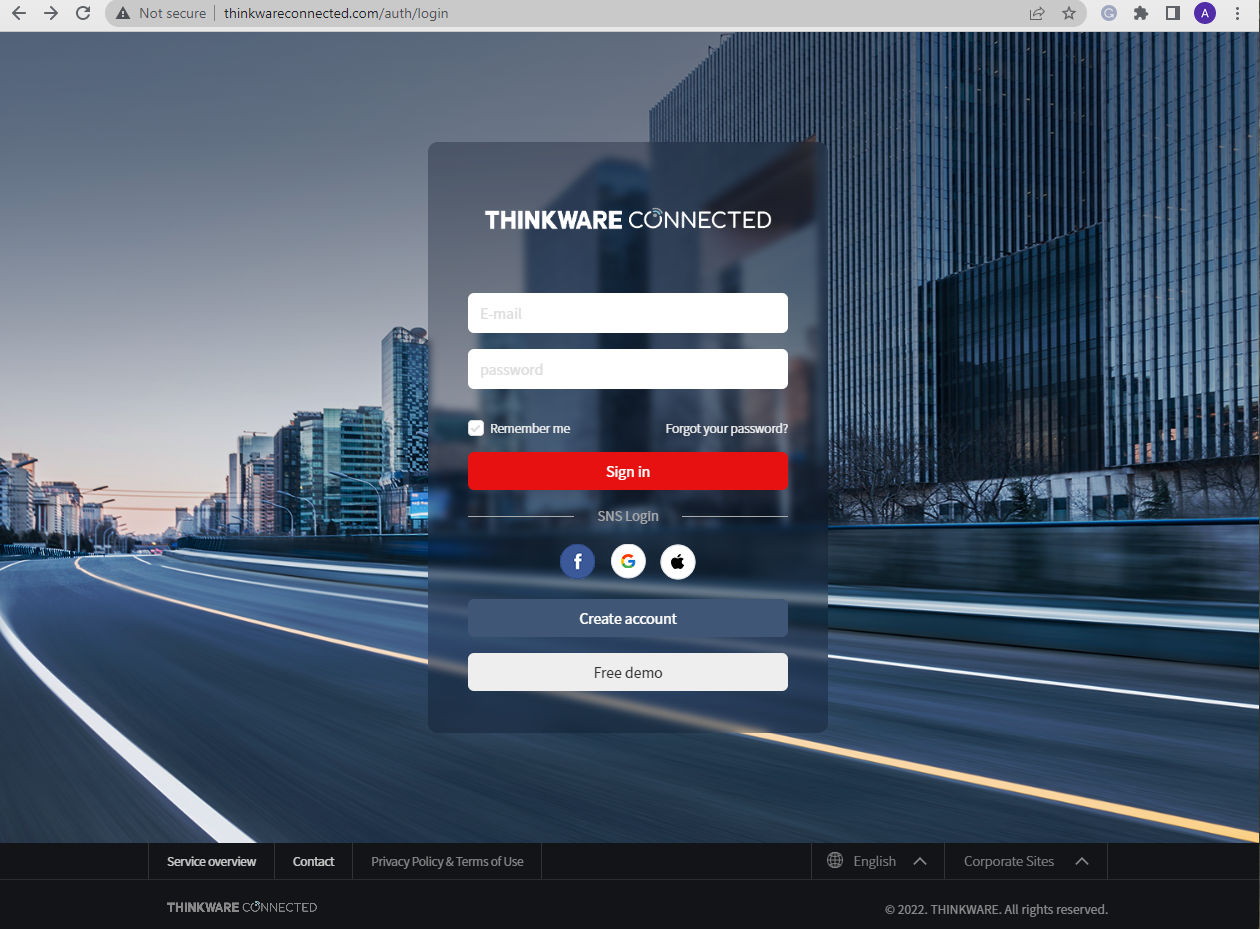

1. Go to http://www.thinkwareconnected.com/auth/login and create or login to your Thinkware CONNECTED account.

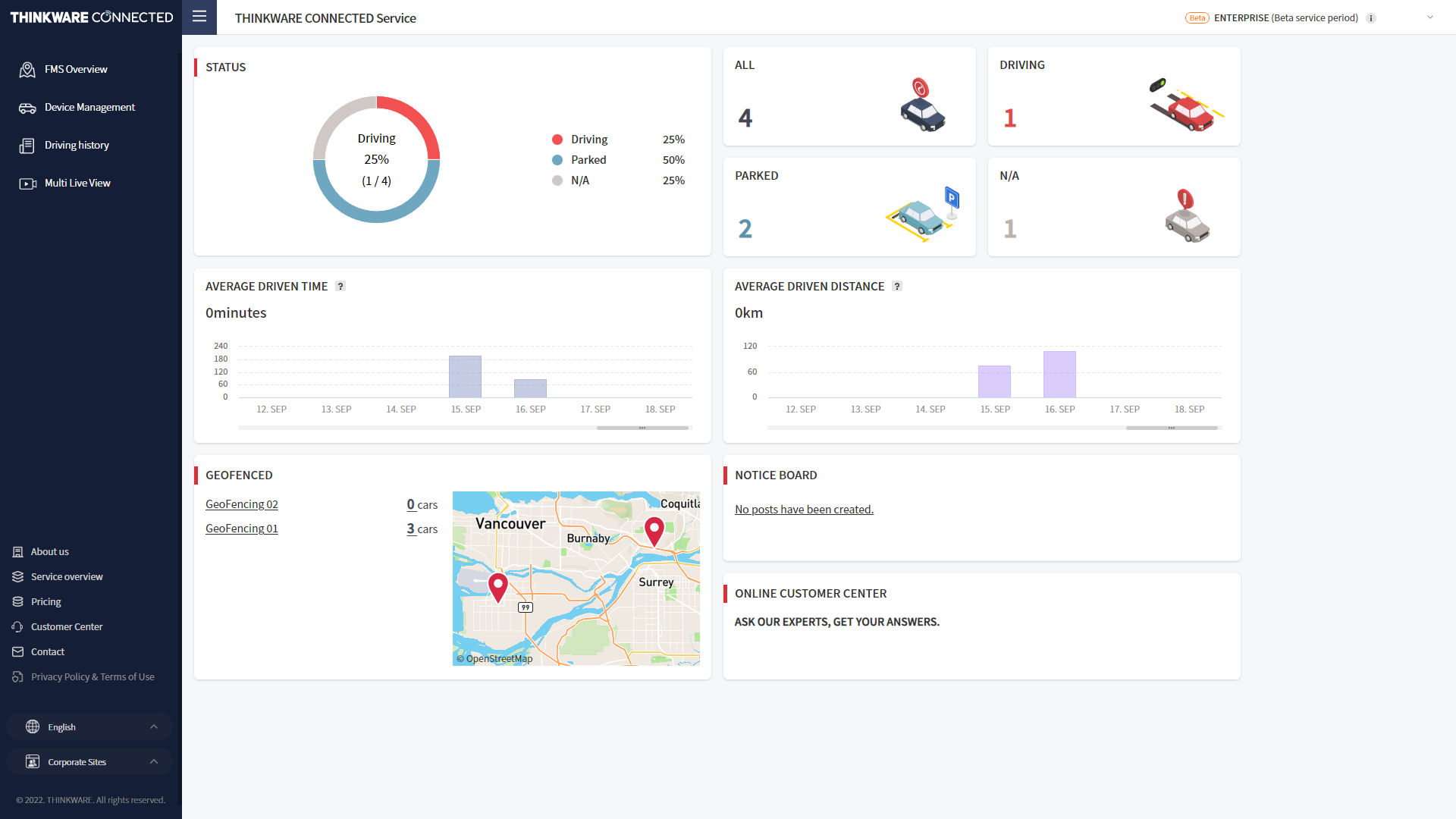

2. Then, you will see the screen below with information like number of vehicles registered, status of the vehicles, average time and distance driven, etc. available on the homepage.

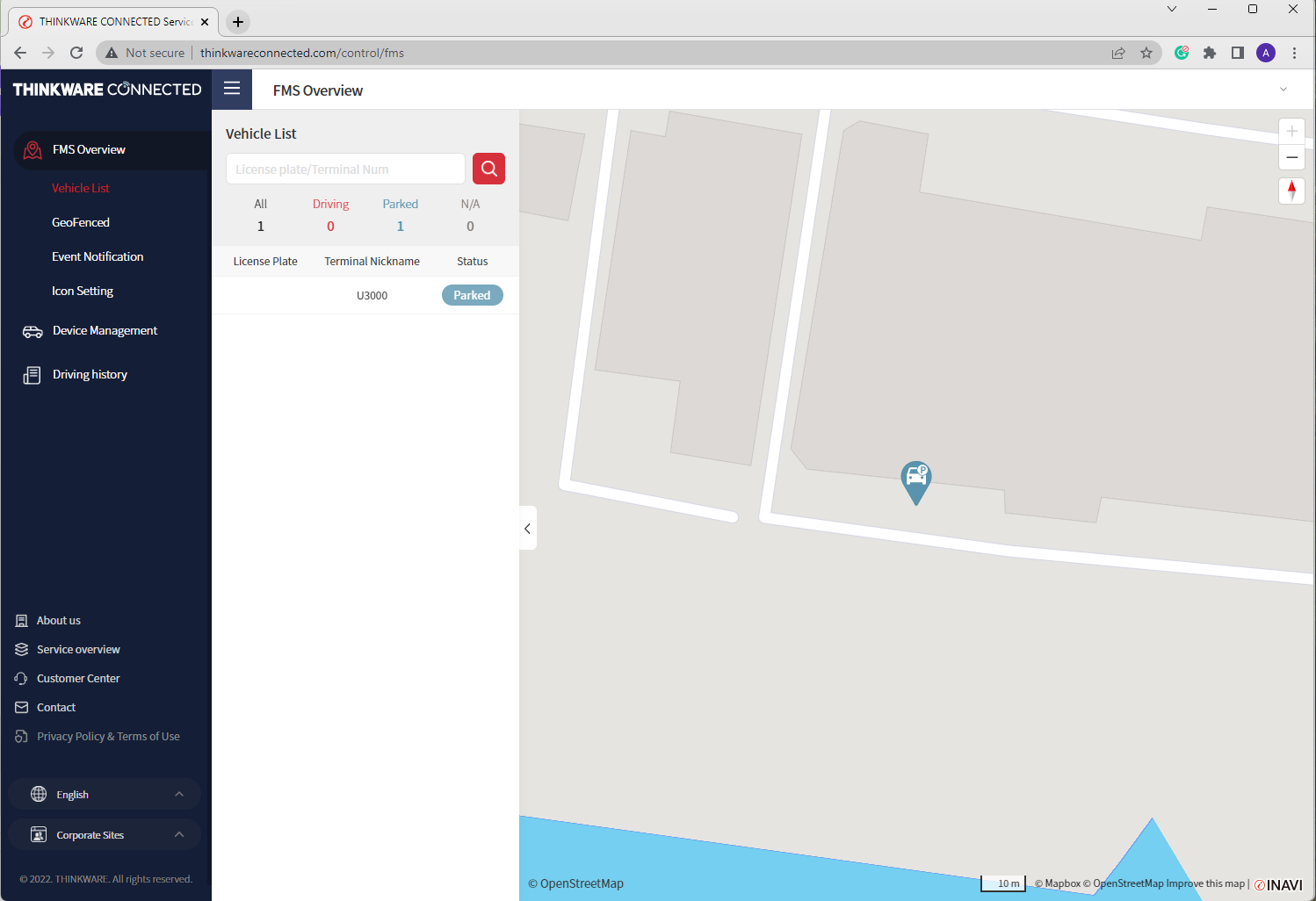

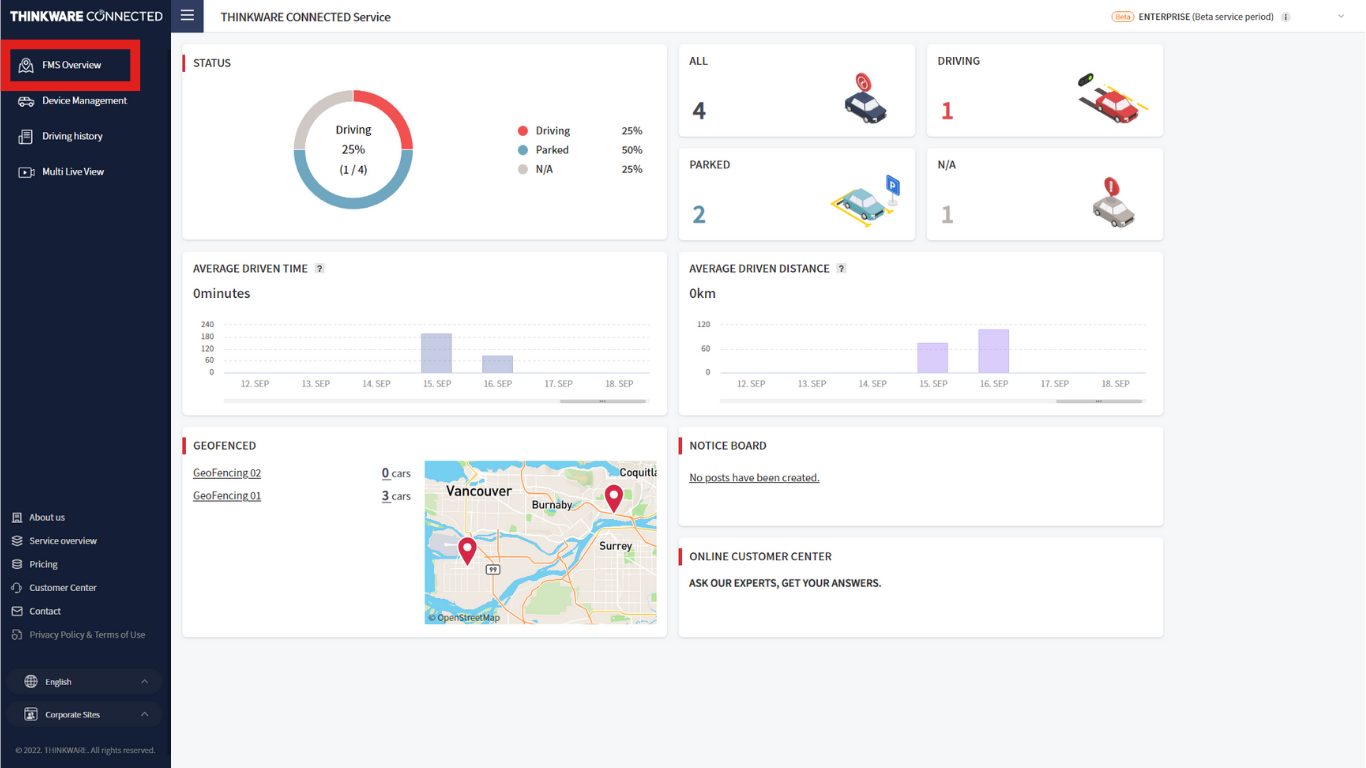

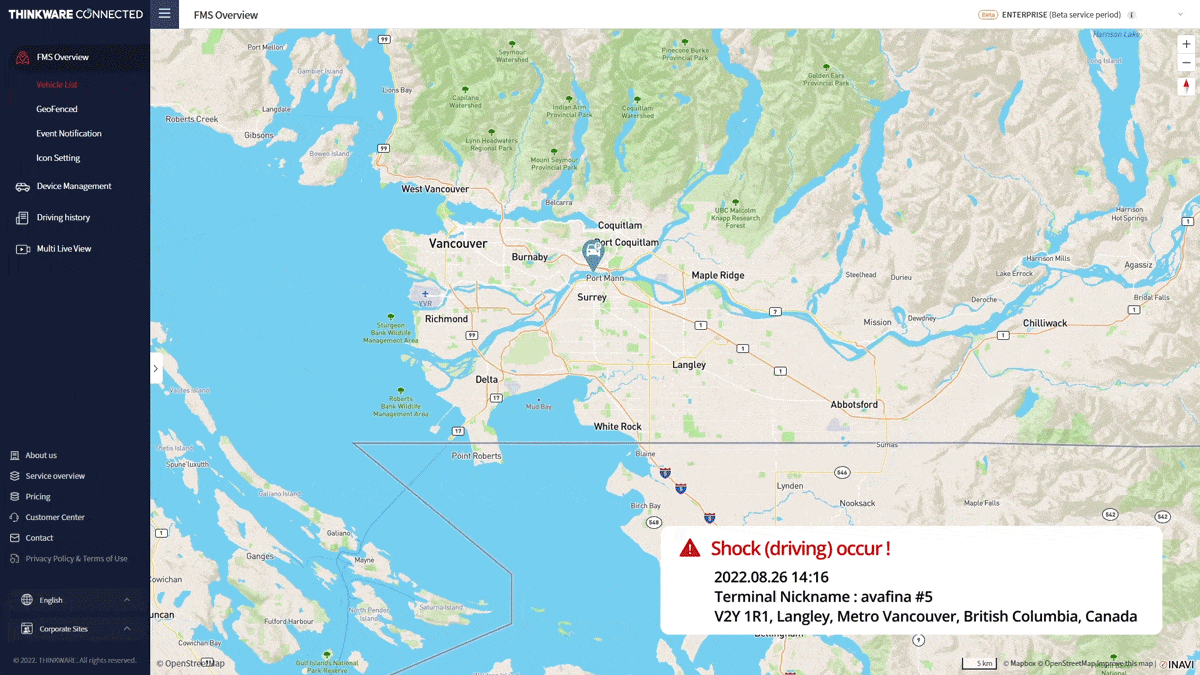

3. Click on FMS Overview on the top left to expand the menu. You can click on Vehicle List in the expanded menu to find details about all registered vehicles and their current status.

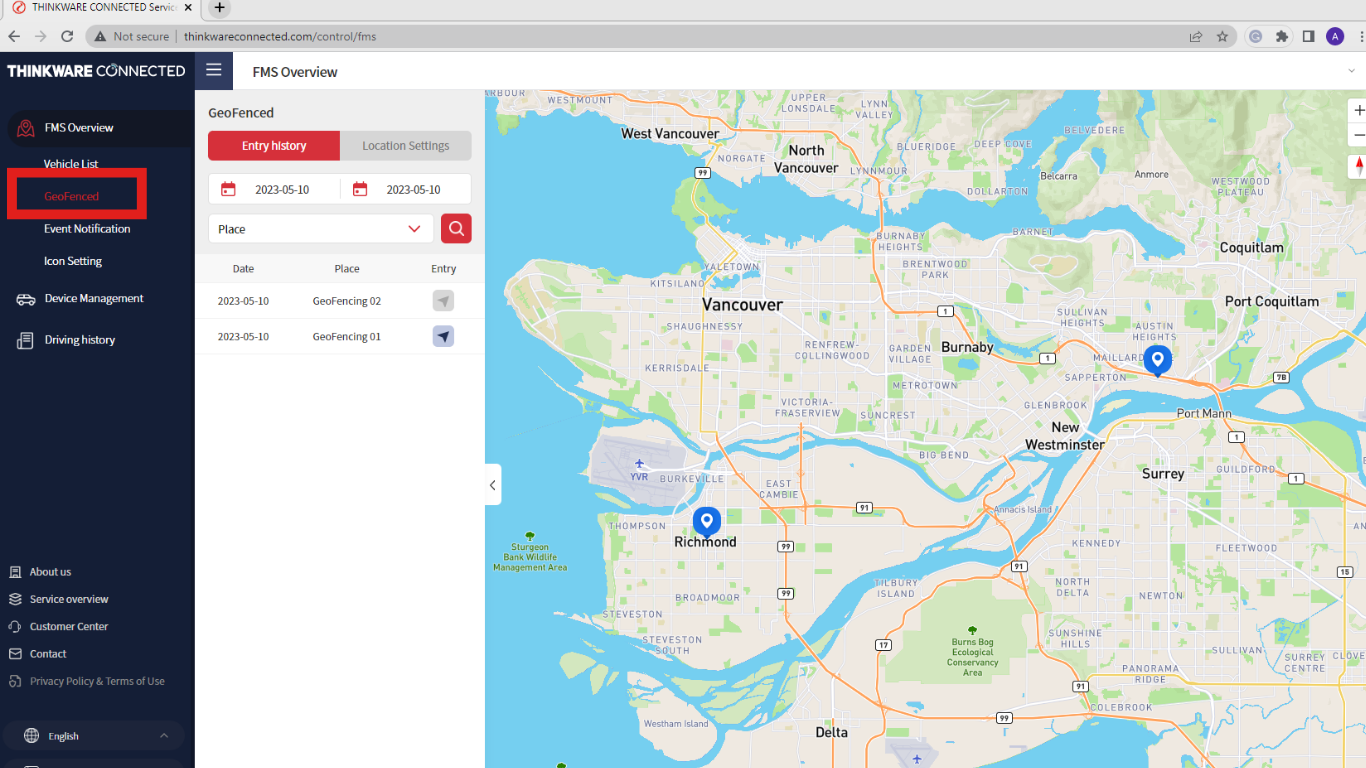

4. For geofencing, click on 'Geofenced' in the left menu where you will be able to see the information clearly displayed on a map of the area.

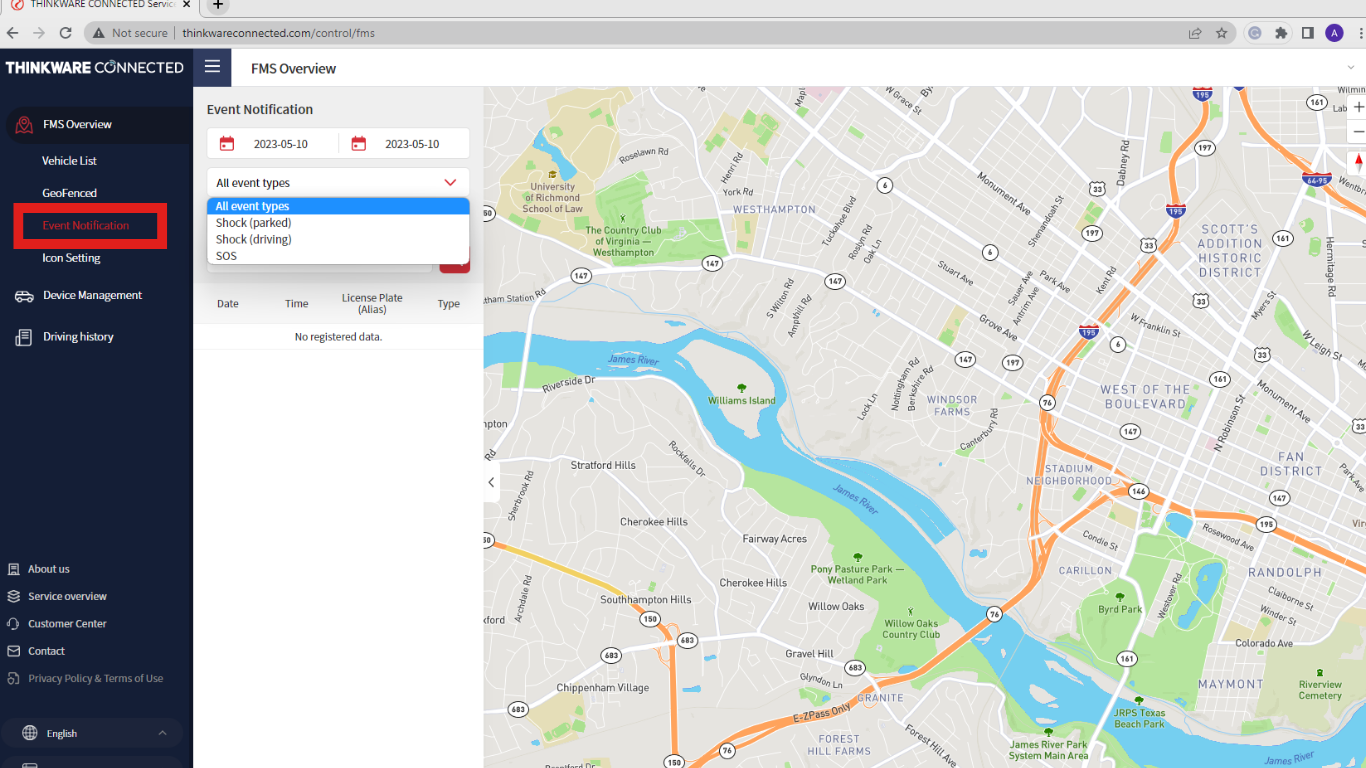

5. All past impact notifications can be found under 'Event Notification' in the left menu. You can also filter the notifications based on date and type of event or see all event types.

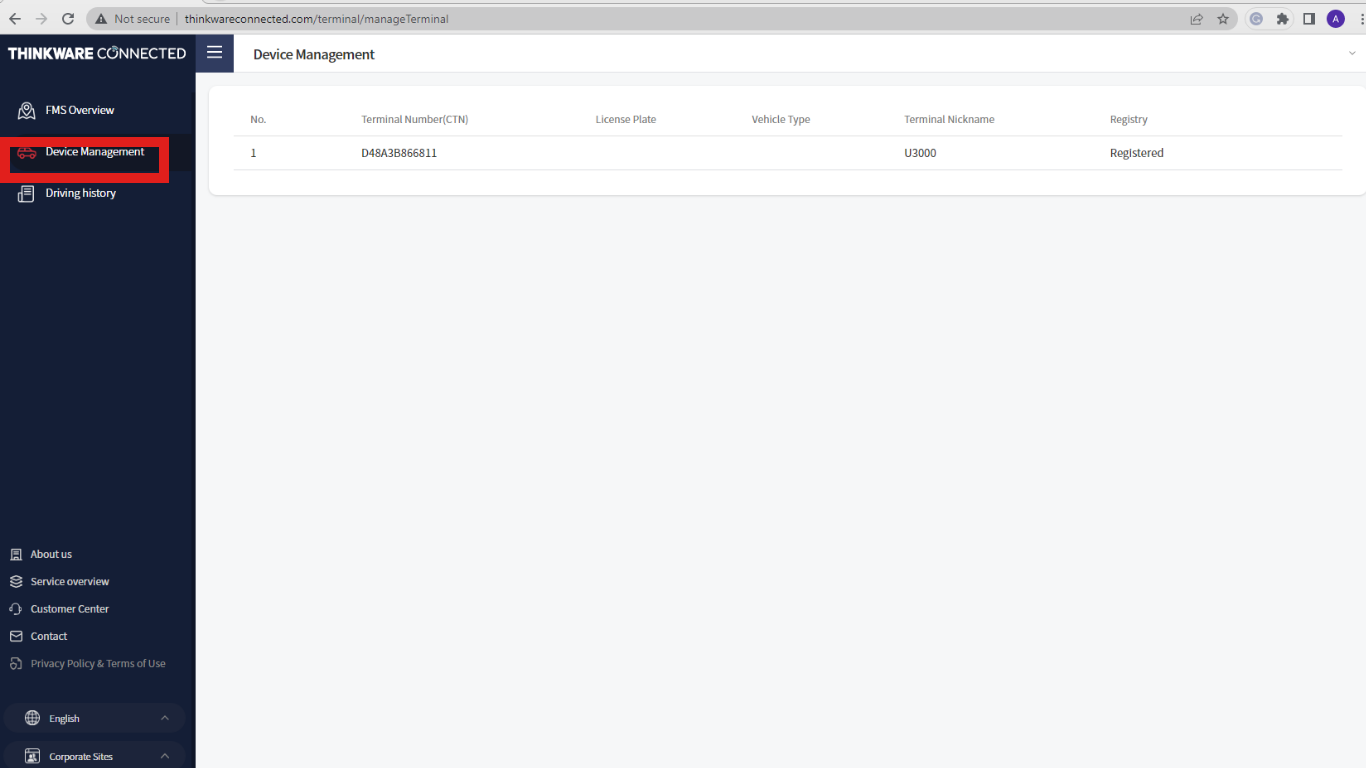

6. Click on 'Device Management' in the left menu to view and edit registered vehicle information.

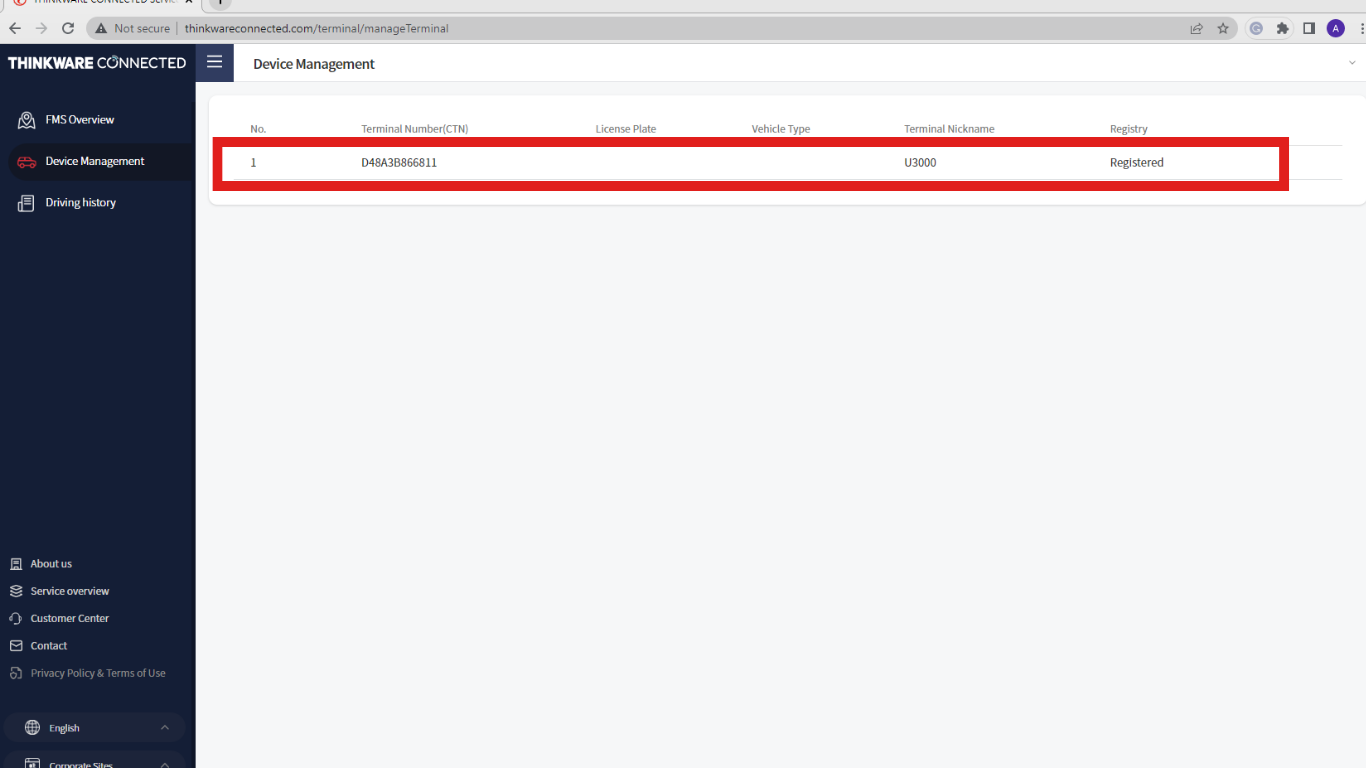

Click on the vehicle whose information you wish to change.

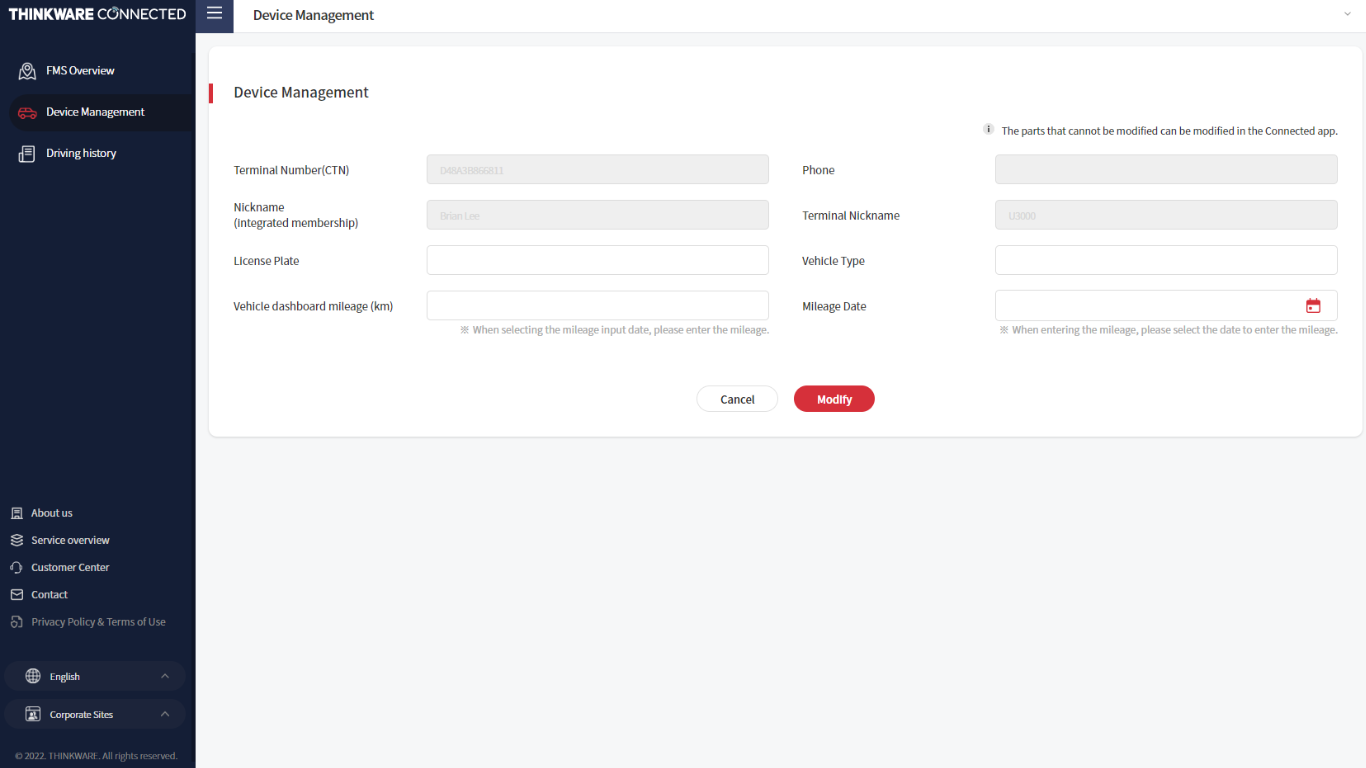

Note: There are a few fields that can only be edited on the Thinkware CONNECTED app and not on FMS.

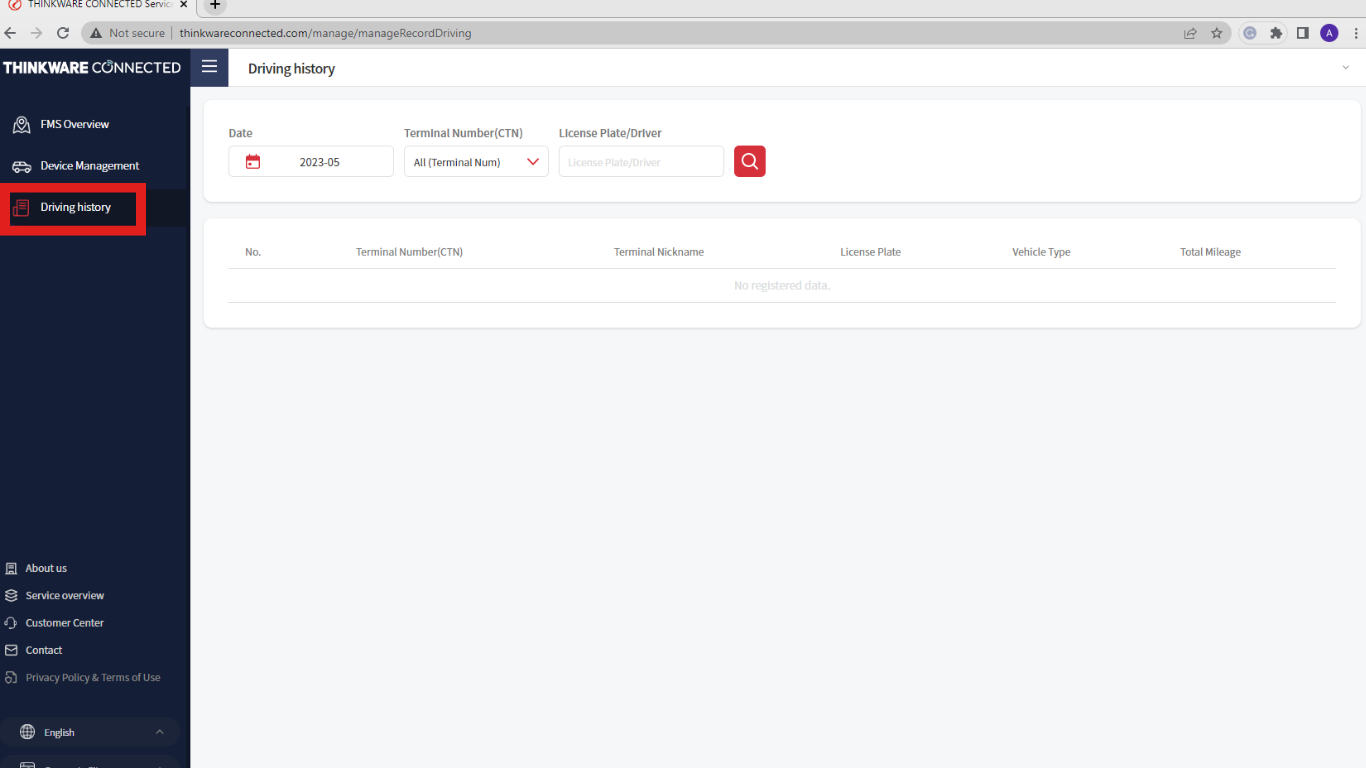

7. To check driving history of all your registered vehicles, go to the tab 'Driving History' in the left menu.


If you have any questions or concerns please reach out to  or 1-844-865-9273.
