How to Reset your Dash Cam

A Factory Reset restores your dash cam settings to their defaults.

If earlier troubleshooting steps have not resolved power or restart problems, rear-camera issues, video or audio problems, or app pairing issues, a Factory Reset may be the next step. Find your model below; a reset pinhole uses a separate model-specific procedure.

Caution: A Factory Reset permanently deletes all recorded video footage on the microSD card. Back up all important video recordings to a PC, Mac, or mobile device before performing a Factory Reset.



Jump to:



Reset your dash cam by model

Find your model category below. Where a model also has a reset pinhole, its pinhole instructions appear at the end of the entry.

Select your model to jump directly to its reset instructions. PC Viewer models link to the separate PC Viewer section below.

Series Select your model
U Series U3000 PRO, U3000, U1000 PRO, U1000 Plus, U1000
Q Series Q1000, Q850 PRO, Q850, Q800 PRO, Q200 PRO, QA200 PRO, Q200, QA200, QA100
ARC Series ARC900, ARC800, ARC700, ARC
X Series X1000, X850, X800, X700, X550, X500, X350, X330, X300, X150
XD Series XD350, XD250, XD200, XD100
F Series F800 PRO, F800, F790, F770, F750, FA700, F550, F200 PRO, FA200, F200, F100, F70 PRO, F70, F50, FA10, FW10, FD20
T Series T700
Motorsports M1
Z Series Z3000
DC Series DC-H1-FG, DC-U1-FG, DC-E1-FG
D Series D4K64DM, D2K64DM
H Series H100



U3000 PRO, U3000

Quick video guide (YouTube Shorts): [U3000 PRO, U3000] How to Reset Your Dash Cam

Hold the REC and MIC buttons together for 5 seconds until the dash cam beeps. Release the buttons; the dash cam will restart and announce that the default settings have been restored.

U3000 PRO, U3000 reset pinhole: Locate the Reset button shown on the rear view of the main unit. Insert the tip of a thin, pointed object to reset the product when an error occurs.

U3000, U3000 PRO REC and Wi-Fi buttons highlighted

U3000 PRO, U3000 Reset button location on the rear view of the main unit



U1000 PRO, U1000 Plus, U1000

Quick video guide (YouTube Shorts): [U1000 PRO, U1000 Plus, U1000] How to Reset Your Dash Cam

Hold the REC and MIC buttons together for 5 seconds until the dash cam beeps. Release the buttons; the dash cam will restart and announce that the default settings have been restored.

U1000 PRO, U1000 Plus, U1000 reset pinhole: Locate the Reset button shown on the rear view of the main unit. Insert the tip of a thin, pointed object to reset the product when an error occurs.

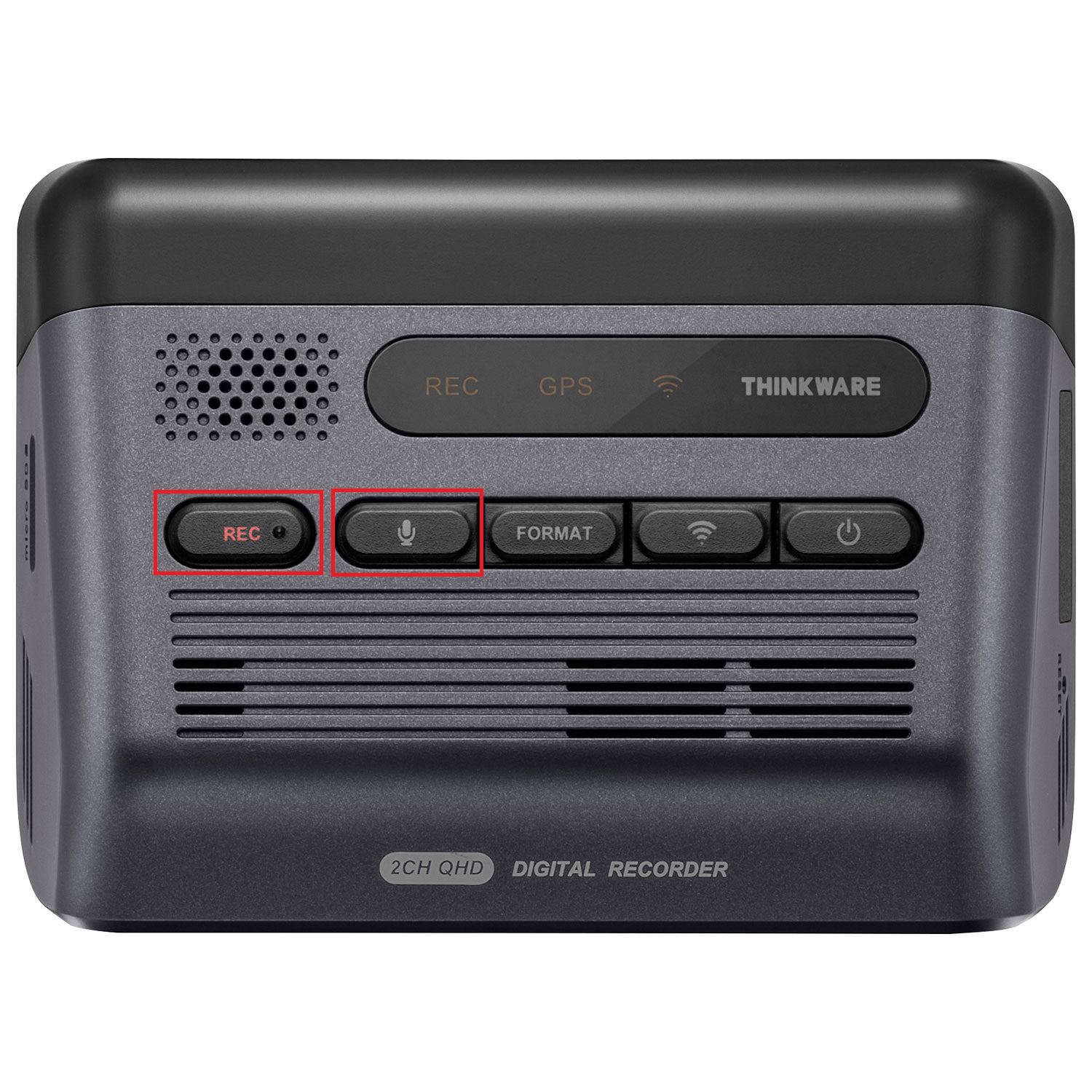

U1000 PRO, U1000 Plus REC button highlighted

U1000 PRO, U1000 PLUS, U1000 Reset button location on the rear view of the main unit



Q1000, ARC700

Quick video guide (YouTube Shorts): [Q1000, ARC700] How to Reset Your Dash Cam

Hold the REC and MIC buttons together until the dash cam beeps. Release the buttons and wait for the dash cam to restart with default settings.

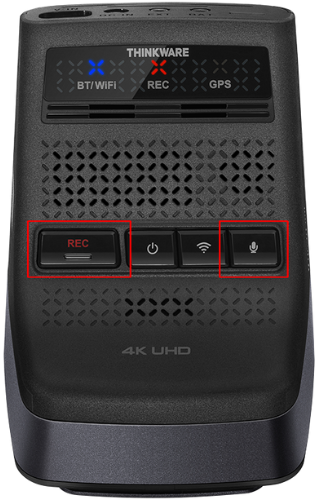

Q1000 REC and microphone buttons highlighted for reset



Q850 PRO, QA200 PRO, QA200, XD250, DC-H1-FG, D2K64DM

Hold the REC and MIC (Voice Recording) buttons together until the dash cam beeps.

Q850 PRO, QA200 PRO, QA200, XD250, DC-H1-FG, D2K64DM reset pinhole: If an error occurs, locate the Reset button on the main unit and insert the tip of a thin, pointed object to reset the product.



Q850, Q800 PRO, F800 PRO

Quick video guide (YouTube Shorts): [Q850, Q800 PRO] How to Reset Your Dash Cam

Hold the MIC and middle REC (Manual Recording) buttons together until the dash cam beeps. Release the buttons and wait for the dash cam to restart with default settings.



QA100

Hold the MIC and middle REC (Manual Recording) buttons together until the dash cam beeps. Release the buttons and wait for the dash cam to restart with default settings.



XD200

Hold the MIC and middle REC (Manual Recording) buttons together until the dash cam beeps. Release the buttons and wait for the dash cam to restart with default settings.



F800

Hold the MIC and middle REC (Manual Recording) buttons together until the dash cam beeps. Release the buttons and wait for the dash cam to restart with default settings.

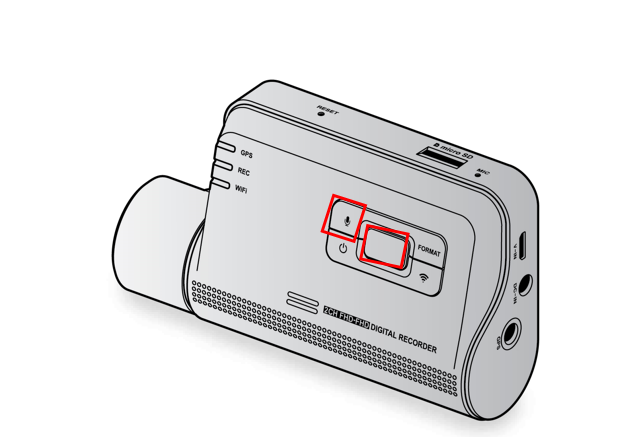

F800 example showing the microphone and middle recording buttons for reset



T700

Hold the MIC and middle REC (Manual Recording) buttons together until the dash cam beeps. Release the buttons and wait for the dash cam to restart with default settings.



Q200 PRO, Q200, F200 PRO

Quick video guide (YouTube Shorts): [Q200 PRO, Q200, F200 PRO] How to Reset Your Dash Cam

Caution: Releasing the buttons at the first beep formats the microSD card instead of performing a Factory Reset.

Hold the Wi-Fi and REC buttons together for about 7 seconds. Keep holding after the first beep at about 5 seconds. Wait for about 2 more seconds for repeated beeps, then release the buttons and wait for the dash cam to restart with default settings.



XD100, FA200, F200

Caution: Releasing the buttons at the first beep formats the microSD card instead of performing a Factory Reset.

Hold the Wi-Fi and REC buttons together for about 7 seconds. Keep holding after the first beep at about 5 seconds. Wait for about 2 more seconds for repeated beeps, then release the buttons and wait for the dash cam to restart with default settings.

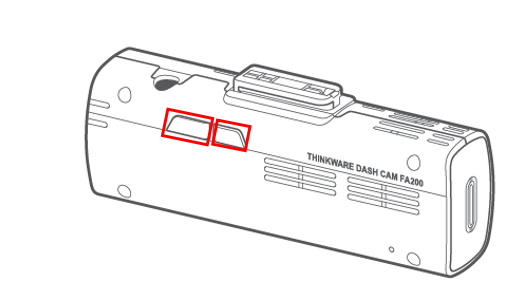

FA200 Wi-Fi and recording buttons highlighted for reset



F70 PRO

Caution: Releasing the buttons at the first beep formats the microSD card instead of performing a Factory Reset.

Hold the Wi-Fi and REC buttons together for about 7 seconds. Keep holding after the first beep at about 5 seconds. Wait for about 2 more seconds for repeated beeps, then release the buttons and wait for the dash cam to restart with default settings.



ARC900

On the Live View screen, tap [Home Menu] (9 dots) on the left of the screen > [About Device] > [Device Info] > [Reset Settings]. Tap [Confirm].

ARC900 reset pinhole: Find the reset hole beside the Power button on the left side of the dash cam. Insert the tip of a thin, pointed object into the reset hole.

ARC 900 reset pinhole beside the Power button on the left side



ARC800

ARC800 reset pinhole: Locate the Reset pinhole on the rear view of the main unit, near the touchscreen and microSD card slot. If an error occurs, insert the tip of a thin, pointed object, such as a paperclip, into the Reset pinhole to reset the device.

ARC 800 Reset pinhole location



ARC

On the Live View screen, tap [Home Menu] > [Dash Cam Settings] > [System Settings] > [Reset Settings].



X1000

On the Live View screen, tap [Device Info] and select the reset option.



Z3000

On the Live View screen, tap [Device Info] and select the reset option.



X850

On the Live View screen, tap [Home Menu] > [Settings] > [System Settings] > [Reset settings].



X800

On the Live View screen, tap [Home Menu] > [Settings] > [System Settings] > [Reset settings] > [Reset].



X700

On the Live View screen, tap [Home Menu] > [Settings] > [System Settings] > [Reset settings] > [Reset].

X700 reset pinhole: Locate the Reset pinhole on the bottom of the main unit. Insert a pin or paperclip and press the Reset button to force the device to restart.



X550, X500

On the Live View screen, tap [Home Menu] > [Settings] > [System Settings] > [Reset settings] > [Reset].



XD350, D4K64DM

Hold the REC (Manual Recording) and MIC (Voice Recording) buttons together until the dash cam beeps.

XD350, D4K64DM reset pinhole: If an error occurs, locate the Reset button on the main unit and insert the tip of a thin, pointed object to reset the product.



DC-U1-FG

Hold the REC (Manual Recording) and MIC (Voice Recording) buttons together until the dash cam beeps.

DC-U1-FG reset pinhole: If an error occurs, locate the Reset button on the main unit and insert the tip of a thin, pointed object to reset the product.



X350

Hold the REC and Wi-Fi buttons together until the dash cam beeps. Release the buttons and wait for the dash cam to restart.



X330

On the Live View screen, tap [Home Menu] > [Settings] > [System Settings] > [Reset settings] > [Reset].



X300

X300 reset pinhole: Locate the Reset pinhole on the side of the main unit. Insert a pin or paperclip and press the Reset button to force the device to restart.



X150

X150 reset pinhole: Locate the Reset pinhole on the main unit housing. Insert a small pin or paperclip and press the Reset button to force the device to restart.



F790

Hold the REC and Format buttons together until the dash cam beeps. Release the buttons and wait for the dash cam to restart.



F770, F750

Hold the REC and Format buttons together until the dash cam beeps. Release the buttons and wait for the dash cam to restart.



F550

Hold the REC and Format buttons together until the dash cam beeps. Release the buttons and wait for the dash cam to restart.



FA700

Hold the REC and Format buttons together to restore the default factory settings.

FA700 reset pinhole: Press the Reset button on the main unit to force the dash cam to restart.



M1

Hold the REC and Wi-Fi buttons together until the dash cam beeps and restarts. Release the buttons and wait for the restart to finish.



Factory Reset using THINKWARE PC Viewer (F100, F70, F50, FD20, FA10, FW10, H100, DC-E1-FG)

Required tools: Windows PC and a microSD card reader or microSD card adapter.

For F100, F70, F50, FD20, FA10, FW10, H100, DC-E1-FG, reset the dash cam using THINKWARE PC Viewer. The steps below cover Windows.

1. Power off the dash cam and remove the microSD card. Insert the microSD card into a card reader connected to your Windows PC. Open the THINKWARE PC Viewer for your model.

2. Open the dash cam settings and use the reset controls for your model:

  • F100: Select [Settings] > [Dashcam Setting], then click [Initialize] > [Save].
  • F70: Select [Settings] > [Dash Cam Settings], then click [Reset]. Click [Confirm] in the pop-up, then [Save].
  • F50, FA10, FW10: Open [Settings] > [Dashcam Setting] > [System Settings], then click [Initialize] > [Save].
  • FD20 (Japanese PC Viewer): Select [設定] > [ドライブレコーダー設定], then click [設定初期化] > [確認] > [保存].
  • H100: Open [Dash Cam Setting], then click [Initialize] > [Save].
  • DC-E1-FG: Select [Settings] > [Dash Cam Settings], then click [Reset]. Click [Confirm] in the pop-up, then [Save].

THINKWARE PC Viewer File

Windows PC Viewer reset

3. Safely eject the microSD card from your computer and insert it back into the powered-off dash cam. Turn on the vehicle ignition to power on the dash cam.



Check your settings after resetting

Check your video resolution. Reconfigure settings you previously changed, such as Time Zone, Parking Mode, and Voice Recording.

If the dash cam does not respond to the reset or still cannot connect, please contact THINKWARE support.
