How to format your microSD card

Formatting prepares your microSD card for recording and deletes its existing files. Choose the dash cam, app, Windows, or Mac method supported by your model.

Formatting removes the files on your microSD card and creates a new file system to prepare it for recording. Regular formatting helps maintain card performance as the dash cam repeatedly records over older files.



Jump to:

Caution: Formatting the microSD card permanently deletes all stored video recordings and data files. Back up all essential video files to a separate storage device before initiating a format.



When your dash cam asks you to format the card

If you hear "Format SD Card for Data Integrity," your microSD card needs formatting. Back up important recordings, then use one of the methods below.

If the message continues after formatting a non-THINKWARE card, the card may have been formatted incorrectly or may be incompatible with your dash cam. Check the file system and allocation unit size using the computer formatting instructions below.



Format microSD card directly on the dash cam

For quick maintenance, you can format the microSD card directly on the dash cam by pressing the physical button or the touchscreen in the LCD menu.

Caution: Formatting deletes every file on the card. Back up important recordings before proceeding and keep power connected until formatting finishes.

Select your model to jump directly to its formatting instructions. Some models use the app or computer method.

Series Select your model
U Series U3000 PRO, U3000, U1000 PRO, U1000 Plus, U1000
Q Series Q1000, Q850 PRO, Q850, Q800 PRO, Q200 PRO, QA200 PRO, Q200, QA200, QA100
ARC Series ARC900, ARC800, ARC700, ARC
X Series X1000, X850, X800, X700, X550, X500, X350, X330, X300, X150
XD Series XD350, XD250, XD200, XD100
F Series F800 PRO, F800, F790, F770, F750, FA700, F550, F200 PRO, F200, FA200, F100, F70 PRO, F70PRO LOCK, F70, F50, FA10, FW10, FD20, FD10
T Series T700
Motorcycle M1
DC Series DC-M2-FG, DC-H1-FG, DC-M1-FG, DC-U1-FG
D Series D4K64DM, D2K64DM
H Series H100, H50



U3000 PRO, U3000

Hold the REC and Wi-Fi buttons together for 3 seconds until you hear a beep.

Quick video guide (YouTube Shorts): [U3000 PRO, U3000] How to Format MicroSD Card via Dash Cam

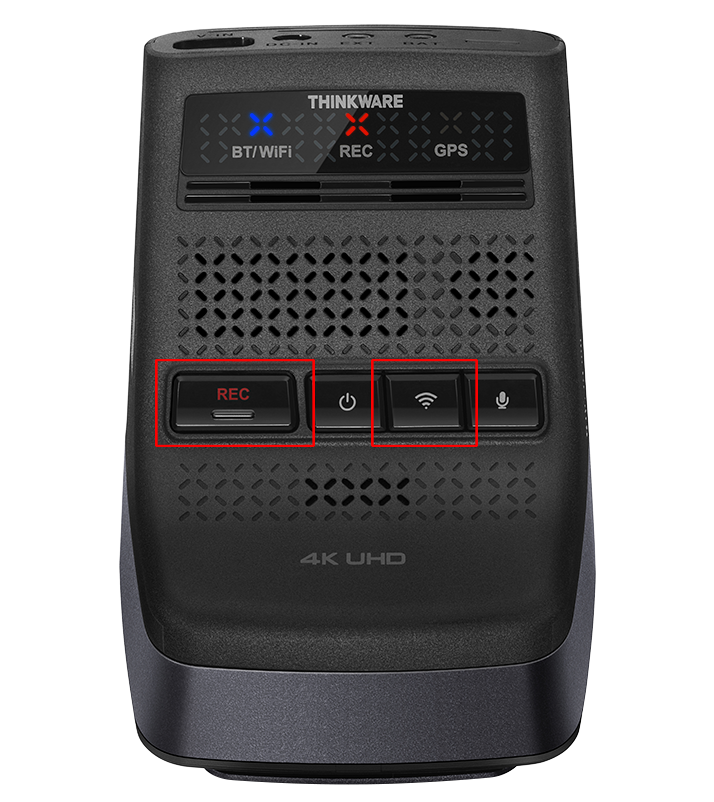

U3000, U3000 PRO REC and Wi-Fi buttons highlighted



U1000 PRO, U1000 Plus, U1000

Hold the REC button for 5 seconds until the format announcement.

Quick video guide (YouTube Shorts): [U1000 PRO, U1000 Plus, U1000] How to Format MicroSD Card via Dash Cam

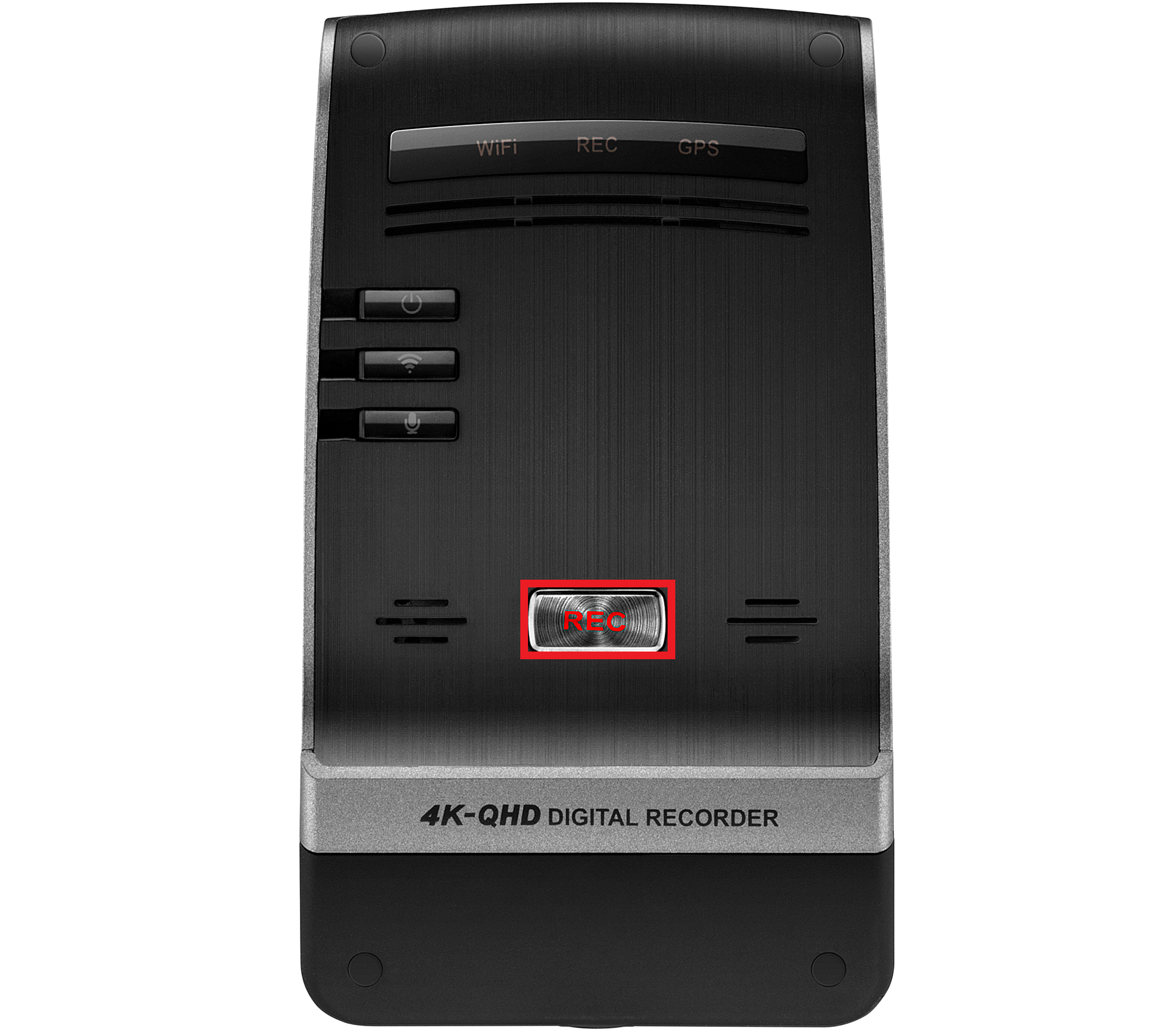

U1000 PRO, U1000 Plus REC button highlighted



Q1000, ARC700

Press the Format button to begin formatting the microSD card.

Quick video guide (YouTube Shorts): [Q1000, ARC700] How to Format MicroSD Card via Dash Cam

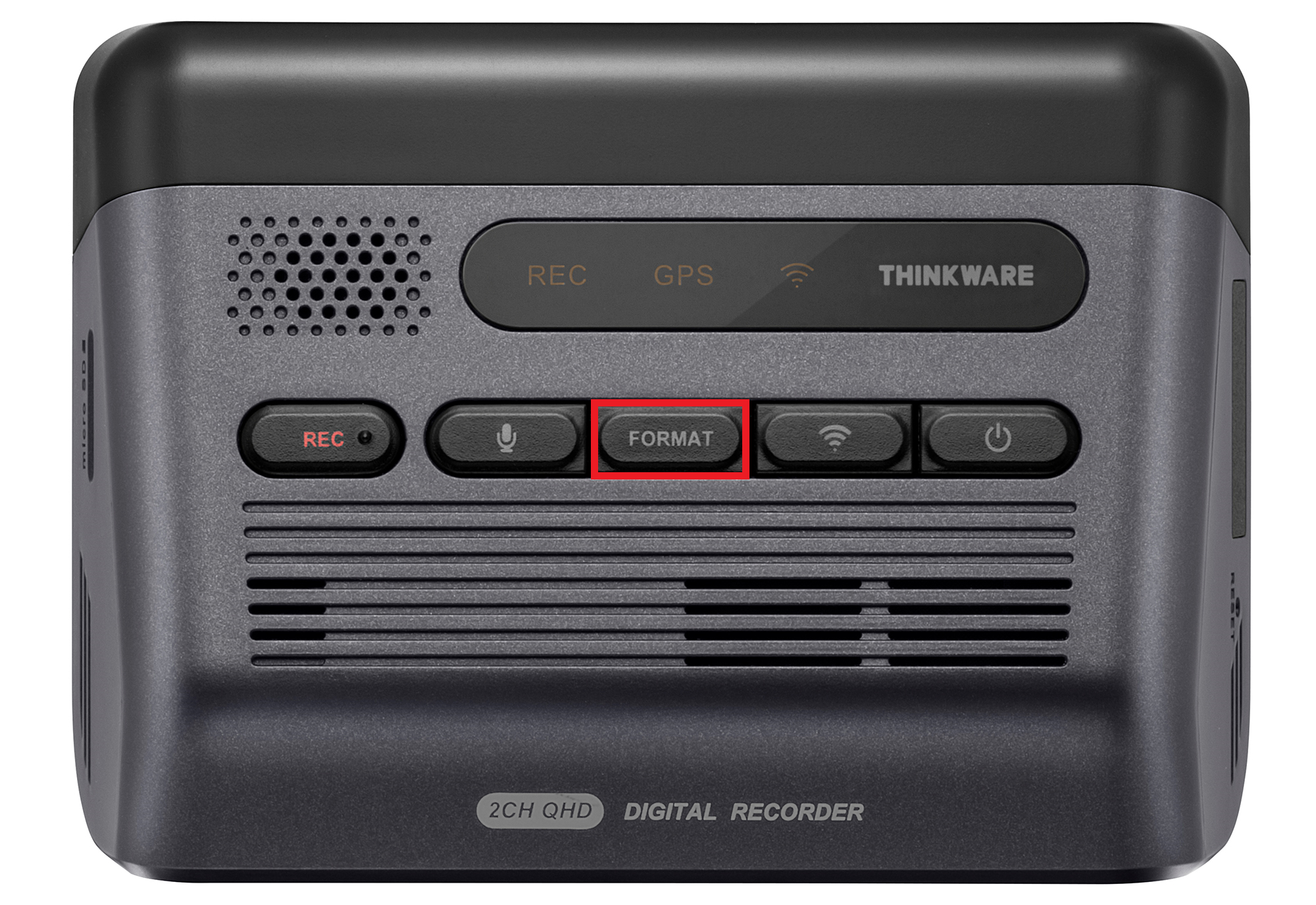

ARC 700, Q1000 Format button highlighted



Q850 PRO, QA200 PRO, QA200, XD250, D2K64DM, DC-H1-FG

Press and hold the Format button to format the microSD card.



Q850, Q800 PRO, F800 PRO

Press the Format button to begin formatting the microSD card.

Quick video guide (YouTube Shorts): [Q800 PRO, Q850] How to Format MicroSD Card via Dash Cam

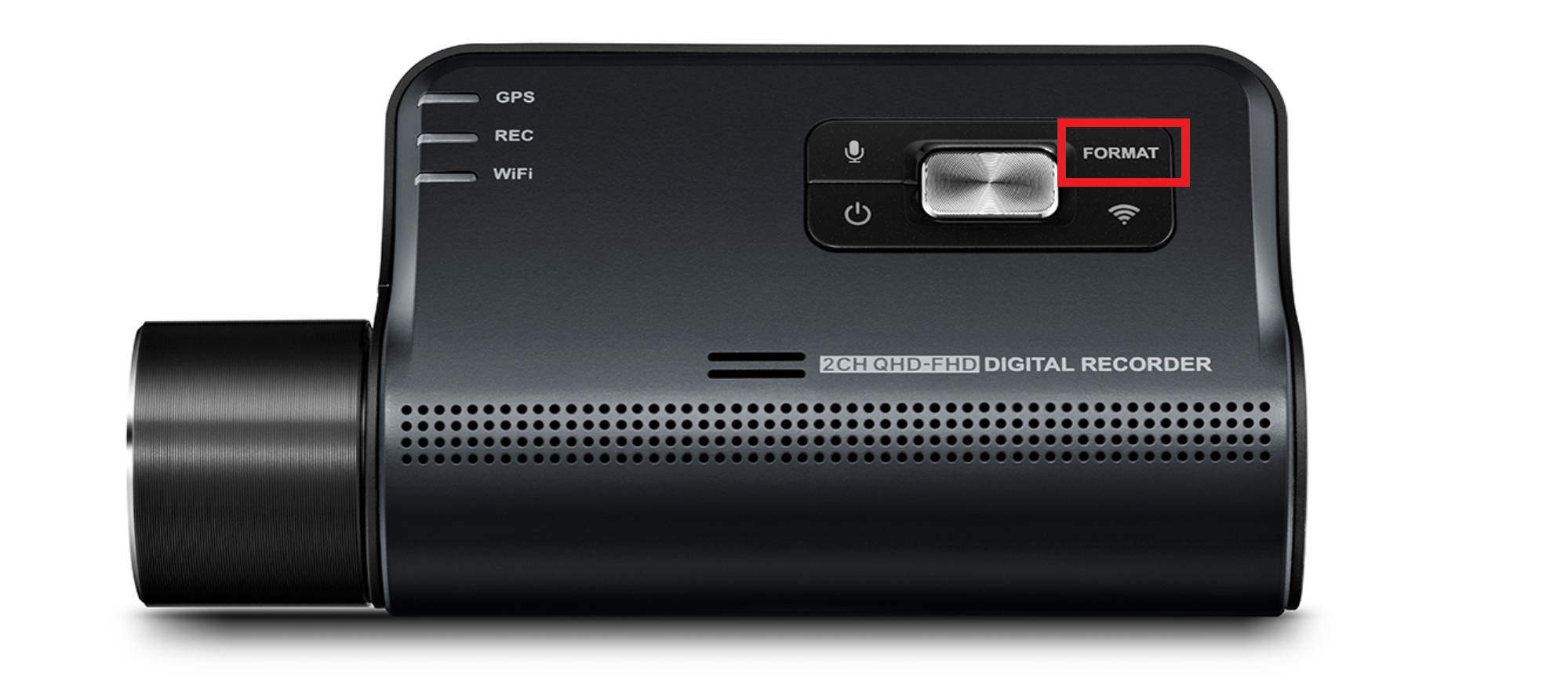

Format button shown in the source for Q850, Q800 PRO, F800 PRO, F800



QA100

Hold the Format button for 3 seconds to start formatting.



Q200 PRO, Q200, F200 PRO

Hold the REC and Wi-Fi buttons together for about 5 seconds until you hear the first beep, then release the buttons.

Quick video guide (YouTube Shorts): [Q200 PRO, Q200, F200 PRO] How to Format MicroSD Card via Dash Cam

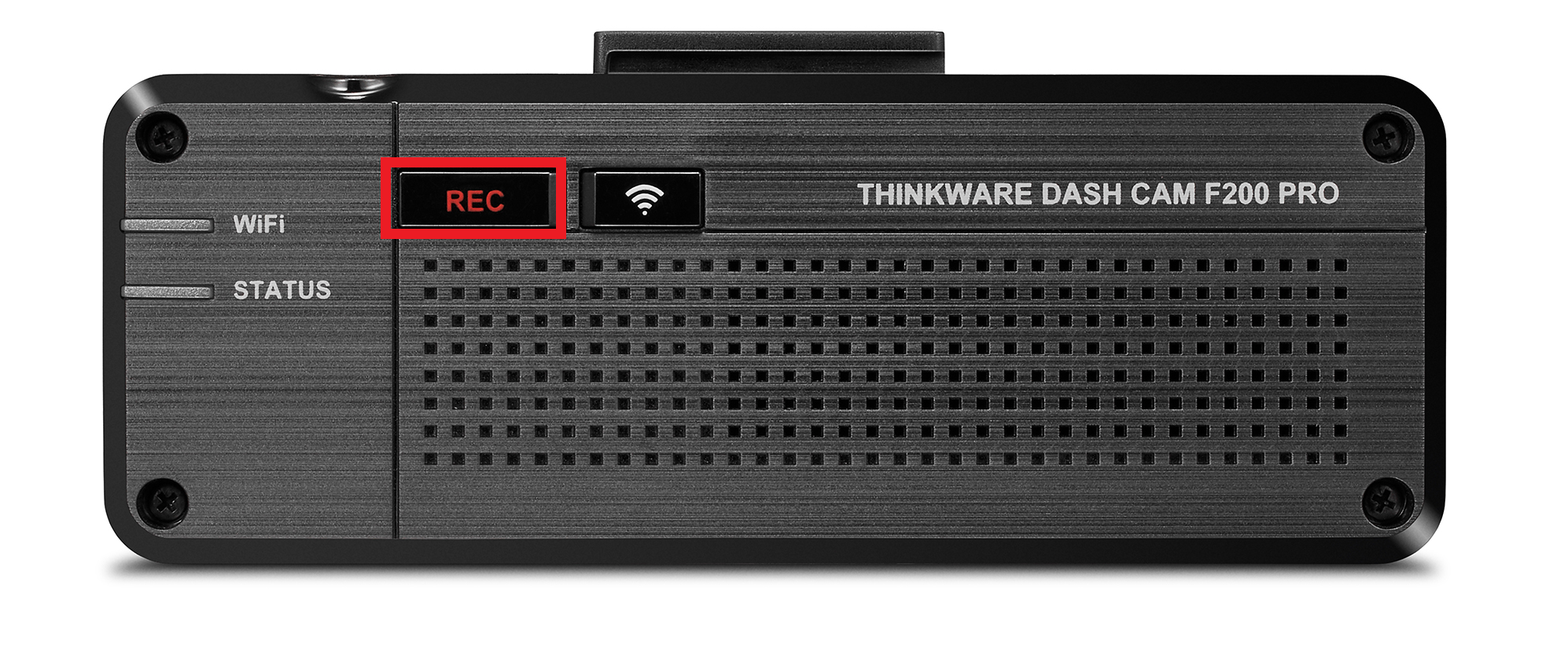

Q200 REC and Wi-Fi buttons held until the first beep at about five seconds



ARC900

On the left side of the LCD screen, tap [Home menu] (9 dots) > [Memory]. Under [Formatting Memory Card], tap [Format] > [Confirm].



ARC800

Swipe down on the Live View screen, tap the gear icon to open the Quick menu, then select [Format memory] > [Confirm].



ARC

Open [System Settings] and select the format option. Follow the confirmation shown on your dash cam screen, then wait for formatting to finish before using the dash cam.



X1000

Open [System Settings] and select the format option. Follow the confirmation shown on your dash cam screen, then wait for formatting to finish before using the dash cam.



X850

1. On the Live View screen, open [Home Menu] > [Settings] > [System Settings].

2. Under [Formatting Memory Card], tap [Format] to format the microSD card.



X800, X700

Open [System Settings] and select the format option. Follow the confirmation shown on your dash cam screen, then wait for formatting to finish before using the dash cam.



X550, X500, X350, X330

Open [Main Menu] > [Mem Card Settings] > [Memory Format], then select [Format].



X300

Select [Settings] > [Additional Functions] > [Memory Format], then select [Format].



XD200

Hold the REC and Wi-Fi buttons together for 3 seconds. A beep indicates that formatting has started.



XD100

Hold the REC and Wi-Fi buttons together for 3 seconds to format the microSD card.



F800

Press the Format button to begin formatting the microSD card.



F790

Press the Format button to begin formatting the microSD card.



F770, F750

Hold the Format button for 3 seconds to start formatting. A voice guide will play.



FA700

Hold the Format button for 3 seconds to start formatting. A voice guide will play.



F550

Hold the REC and POWER buttons together for 3 seconds. The left LED alternates green and red while formatting.



F200, FA200

Hold the REC button for 5 seconds until the format announcement.

Or hold the Wi-Fi and REC buttons together for about 5 seconds until you hear the first beep, then release the buttons. Holding past the first beep performs a Factory Reset instead.



F100

Hold the REC button for 5 seconds to start formatting.

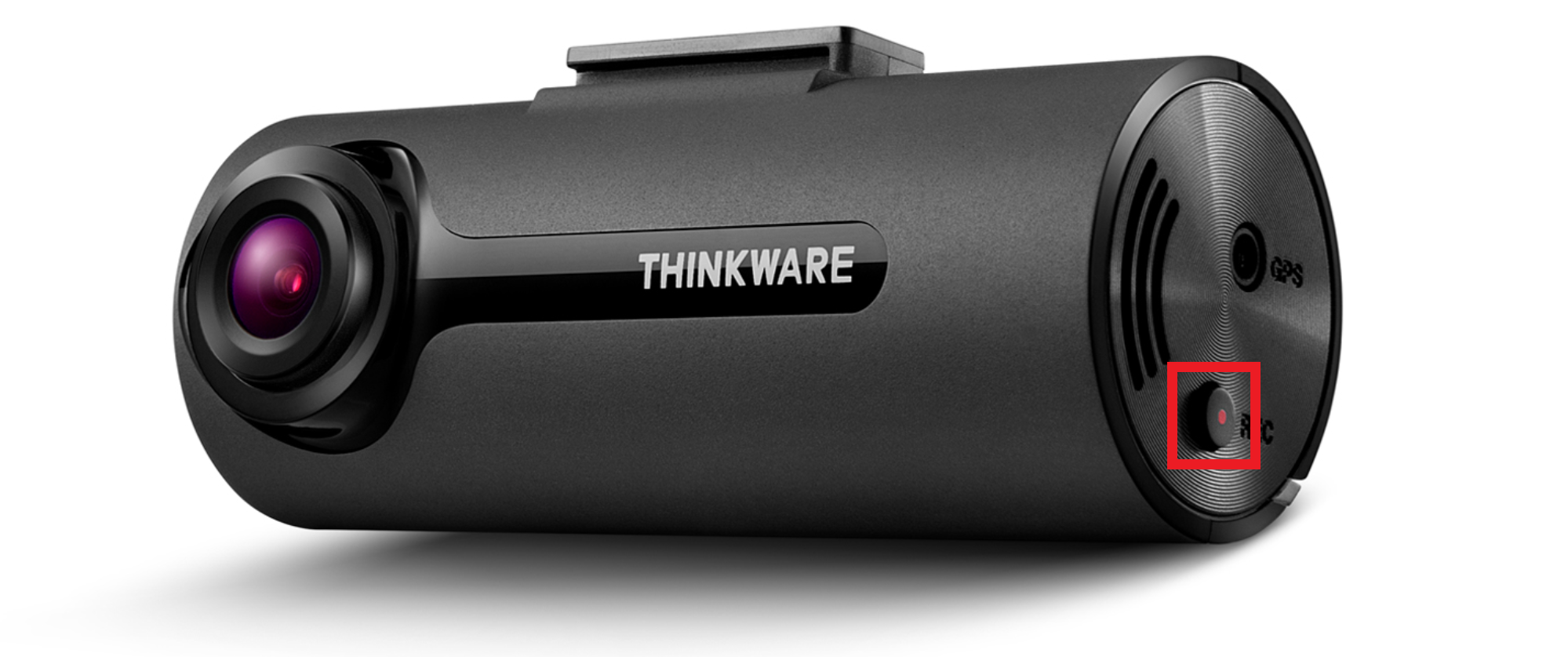

F70 PRO

Hold the REC button for 5 seconds until the format announcement.

F70 PRO only: Or hold the Wi-Fi and REC buttons together for about 5 seconds until you hear the first beep, then release the buttons. Holding past the first beep performs a Factory Reset instead.



F70PRO LOCK, FD20

Hold the REC button for 5 seconds to start formatting.



F70, F50, FD10, FA10, FW10

F70, F50: Hold the REC button for 5 seconds until the format announcement.

FD10, FA10, FW10: Hold the REC button for 5 seconds to start formatting.



DC-M2-FG

Hold the REC button for 5 seconds to start formatting.



DC-M1-FG

Hold the Wi-Fi button for 5 seconds to start formatting.



H100

1. Disconnect the power cable from the dash cam.

2. Hold the REC button while reconnecting the power cable to start formatting.



H50

Hold the REC button for 5 seconds to start formatting.



Format microSD card using mobile apps

Required tools: Smartphone running iOS or Android, THINKWARE DASH CAM LINK app or THINKWARE CLOUD app.

You can format the microSD card wirelessly using the mobile app connected to your dash cam via Bluetooth, Wi-Fi, or Hotspot.



Format using THINKWARE DASH CAM LINK app

M1: Use Format using THINKWARE DASH CAM LINK app in this section. Do not use a reset button combination as a format alternative.

1. Turn on the vehicle ignition to power on the dash cam.

2. Open the THINKWARE DASH CAM LINK app on your smartphone and connect to the dash cam via Bluetooth or Wi-Fi.

Connected U3000 PRO dashboard in THINKWARE DASH CAM LINK with the settings gear at the top right

3. Tap the gear icon [Dash Cam Settings] > [Memory Card Settings] > [Format] > [OK].

Note: Menu and button names may vary by model. On F70PRO LOCK, select [Dash Cam Settings] > [Memory Card Settings] > [Formatting Memory Card] > [Format] > [Confirm].

Formatting Memory Card warning with the Format, OK, and Cancel buttons visible

4. The dash cam will disconnect from your smartphone and begin formatting the microSD card.



Format using THINKWARE CLOUD app

1. Connect your smartphone to the dash cam via Wi-Fi or Hotspot.

2. Open the THINKWARE CLOUD app and select [Dash Cam Settings].

3. Select [Memory Card Settings] > [Format].

4. The dash cam will disconnect from the smartphone while formatting commences.



Format microSD card on a Windows PC

Required tools: Windows PC, microSD card reader or microSD card adapter.

To format your microSD card manually using a Windows PC computer, follow these steps.

1. Power off the dash cam and remove the microSD card.

2. Insert the microSD card into a microSD card adapter and connect it to your PC's SD card slot or insert it into a USB reader and connect the reader to a USB port.

MicroSD card and microSD card adapter

3. Open [File Explorer] on your PC.

4. In the left sidebar or under [This PC], locate and select your [MicroSD Card] drive.

Selecting the microSD card in the File Explorer sidebar

5. Right-click the microSD card drive icon and select [Format].

Right-click menu with Format highlighted

6. Select the correct [File System] and [Allocation Unit Size] based on your microSD card storage capacity:

Select FAT32 with 32 kb allocation size for 8GB, 16GB, and 32GB cards, and exFAT for 64GB, 128GB, 256GB, and 512GB cards.

SD Card Size File System Allocation Unit Size
8GB / 16GB / 32GB FAT32 (default) 32 kb
64GB / 128GB / 256GB / 512GB exFAT Default Allocation Unit size

7. Click [Start].

8. Click [OK] on the warning prompt to confirm that all files will be erased.

Windows format warning with OK highlighted

9. Once formatting completes, click [OK] on the success window.

Windows Format Complete dialog with OK highlighted

10. Right-click the microSD card drive icon in File Explorer and select [Eject] before removing the reader from your PC.

File Explorer showing the right-click menu with Eject selected for the microSD card drive



Format microSD card on a Mac computer

Required tools: Mac computer, microSD card reader or microSD card adapter.

To format your microSD card using a Mac computer running macOS, perform the following steps.

1. Power off the dash cam and safely remove the microSD card.

2. Insert the microSD card into a microSD card adapter or USB reader and plug it into your Mac.

MicroSD card and microSD card adapter

3. Open [Finder] on your Mac.

4. Select [Applications] in Finder, open the [Utilities] folder, and launch [Disk Utility].

Mac Finder window displaying the Applications folder, Utilities folder, and Disk Utility application

5. In the left sidebar of Disk Utility, select your microSD card drive (typically named after your dash cam model, such as U3000 PRO).

Disk Utility window with the U3000PRO external drive selected in the left sidebar

6. Click [Erase] at the top of the Disk Utility window.

7. Select the appropriate [Format] for your microSD card size:

Select MS-DOS (FAT) for 8GB, 16GB, and 32GB cards, and ExFAT for 64GB, 128GB, 256GB, and 512GB cards.

SD Card Size File System
8GB / 16GB / 32GB MS-DOS (FAT)
64GB / 128GB / 256GB / 512GB ExFAT

Disk Utility Format menu showing MS-DOS (FAT) and ExFAT

8. Click [Erase] to start the formatting process.

9. When formatting is complete, click [Done].

Disk Utility completed erase with Done highlighted

10. Click the [Eject] symbol next to the microSD card name in Finder or Disk Utility to safely remove the memory card.

 Eject icon next to the microSD card in Disk Utility



If formatting fails

If your computer does not show the card, check whether the card reader recognizes it.

If formatting fails, replace the microSD card and try again. If the problem continues with the replacement card, please contact THINKWARE support.
