iVolt Mini Battery Pack Issues

iVolt Mini Battery Pack

Increase the duration of the Parking Surveillance mode of your THINKWARE Dash Cam with the power source; the iVolt Mini External Battery.

If you are encountering an issue with the iVolt Mini Battery Pack, please refer to the troubleshooting steps outlined below to correct the problem.

If the issues do persist, please reach out to our team at support@thinkware.com or 1-844-865-9273.

Dash Cam Switching to Parking Mode

The Dash Cam can only switch to Parking Mode once power has been lost to the iVolt Mini Battery Pack. The Battery Pack is losing power, causing the dash cam to enter parking mode at random.

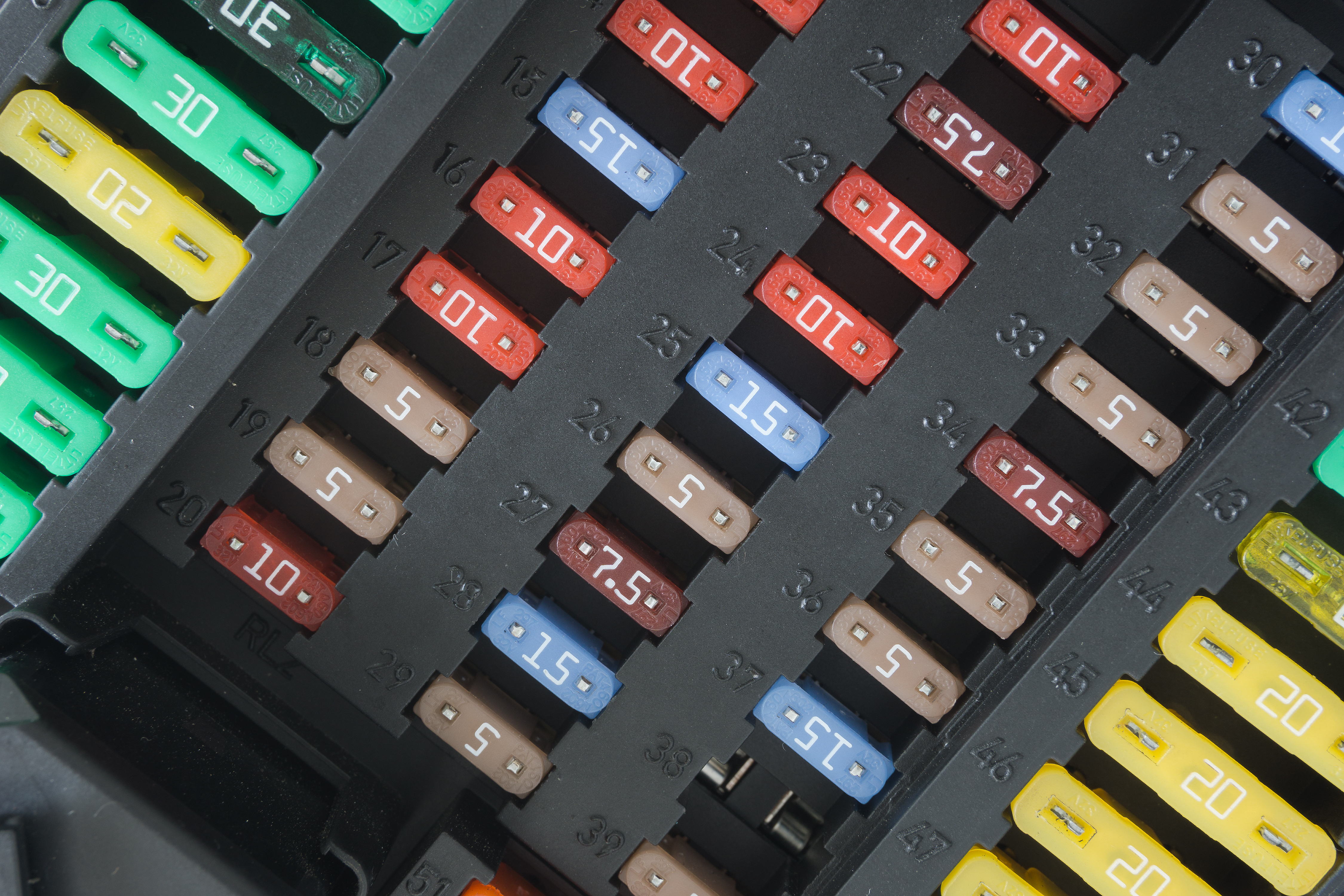

1.  Check the connection of the Input Cable.

Ensure this is securely connected to the Fuse Tap, and to the Fuse Box itself.

*You may need to test using a different 20A Fuse if the one used is not working correctly.

2. Check the connection between the Output Cable and Hardwiring Cable.

Ensure the cables are connected securely and spliced to the corresponding colour.

*If not connected securely, the dash cam may enter Parking Mode or power down.

Dash Cam not entering Parking Mode

If the Dash Cam is not entering Parking Mode when you turn off the ignition, the iVolt Mini Battery Pack is not losing power.

1.  Ensure you have enabled the Parking Mode Setting.


2. Check the fuse used for the Input Cable.

Ensure the fuse used to power the iVolt Mini Battery Pack is only receiving power when the ignition is on.

*You may need to test using a different 20A Fuse if the one used is not working correctly.


3. If using the 12V Car Charger Input Cable, check if your vehicle has an always-on outlet.

*If connected to an always-on 12V outlet, the Battery Pack will not lose power with the ignition and may cause your vehicle battery to drain.

Dash Cam will not Power On

If the Dash Cam will not power on when using the iVolt Mini Battery Pack, this can be caused by a few different reasons. Refer to the following article.

Won't Power On

Battery Pack will not charge

If the iVolt Mini Battery Pack will not charge, check the Input Power Connections.

1. Ensure the iVolt Battery Pack has not been set to OFF.

*If the Battery Pack is set to OFF, it will not charge.


2. Check the Charge LEDs.

If no LEDs are illuminated, the Battery Pack itself is not receiving power.


LED LED STATUS MEANING
CHARGE Solid Red Charging
FULL Solid Green Full Charge

3. Ensure the Battery Pack is receiving power.

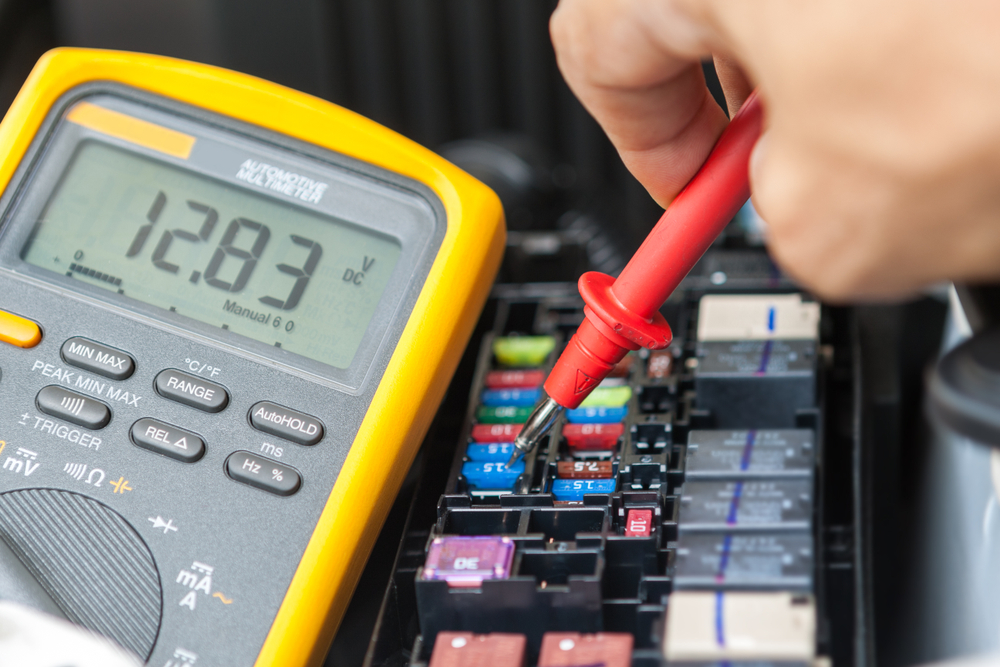

Ensure the Battery Pack is connected to a minimum 20A ACC Fuse, and that the fuse is receiving power.

*It may be required to test with a different 20A ACC Fuse if the one used, is not working correctly.

If using the 12V Car Charger Input Cable, test with another 12V Device to ensure the port is operational.

Parking Mode is shutting down early

If the Parking Mode duration is less than expected, please ensure you have disabled the Battery Protection Settings.

1. Ensure you have disabled the Battery Protection Settings. (Voltage Cut-off, Off-Timer, and Wintertime Battery Protection.


2. Ensure the Battery Pack is fully charged before use.

*The iVolt Mini Battery Pack charges on HIGH within 45 minutes while driving.

*If the battery pack is not charging fully, or holding a charge, please contact us.


LED LED STATUS MEANING
CHARGE Solid Red Charging
FULL Solid Green Full Charge
