LDWS (Lane Departure Warning System)

What is the LDWS Speed Setting?

The Lane Departure Speed Setting is paired with the LDWS Setting. The LDWS must be enabled. The LDWS Speed is the minimum speed you must drive for the Lane Departure Alerts to sound.

Compatible Dashcams

• Applicable for the U3000, U1000 Plus, U1000, Q1000, Q850, Q200, Q800PRO, F800PRO, F800, F790
• Applicable when paired with the GPS Accessory; F200PRO, X1000, X700, X800

How to enable the Lane Departure Warning System

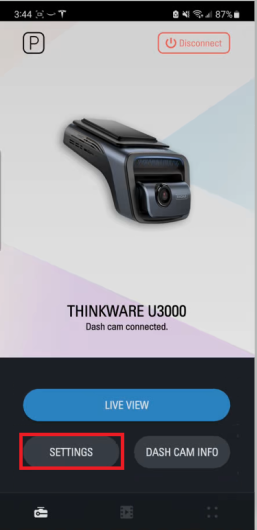

1. Connect to the Dash Cam via Wi-Fi or Bluetooth

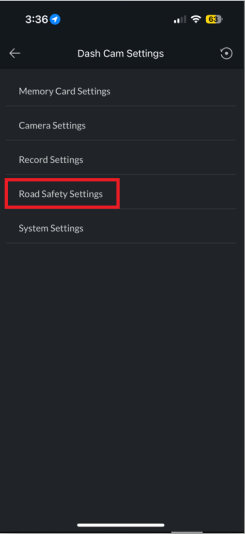

2. Select Dash Cam Settings > Road Safety Settings

3. Under LDWS (Lane Departure Warning System) select the desired sensitivity level.

4. Click the back arrow in the top-left to save your changes.

*ADAS feature should be enabled to utilize FCWS

*The recommended setting is Mid

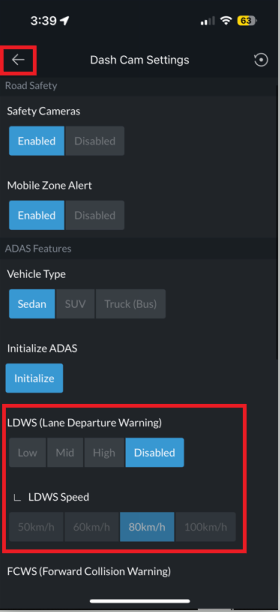

How to Alter the LDWS Speed Setting

1. Connect to the Dash Cam via Wi-Fi or Bluetooth

2. Select Dash Cam Settings > Road Safety Settings

3. Ensure the LDWS Warning has been enabled. Under LDWS Speed select your desired minimum speed level.

4. Click the back arrow in the top-left to save your changes.

Note:

• The settings vary depending on the dash cam model
• ADAS feature should be enabled to utilize FCWS
